Timing Cover

Engine Front Cover

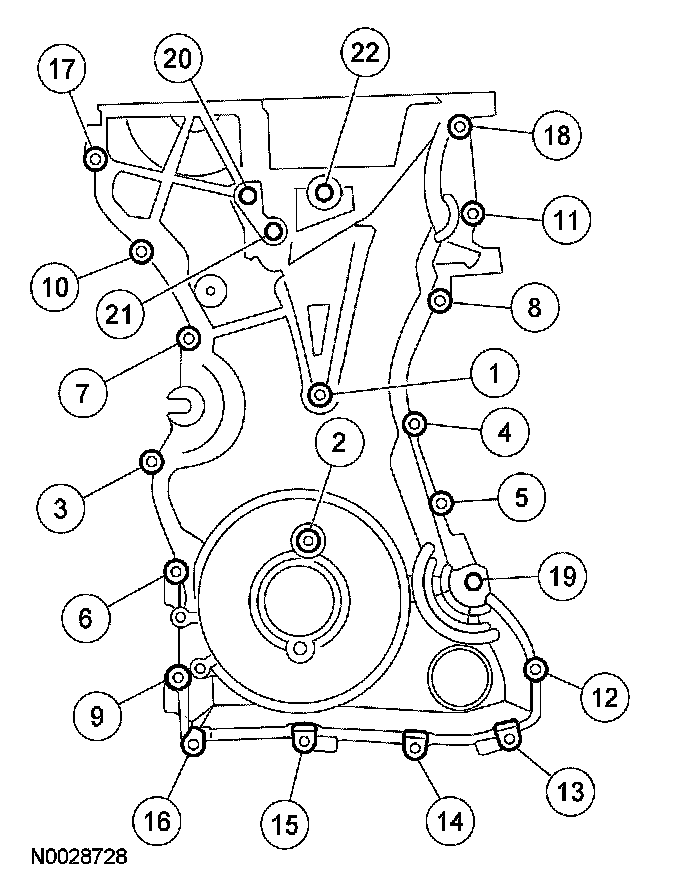

Install the engine front cover. Tighten the bolts in the sequence shown, to the following specifications:
^ Tighten the 8-mm bolts to 10 Nm (89 inch lbs.)
^ Tighten the 13-mm bolts to 48 Nm (35 ft. lbs.)
