Torque Specifications

Crankshaft Pulley

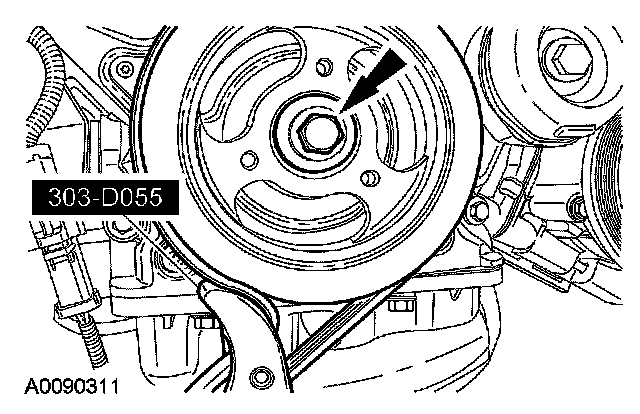

Install the bolt and washer. Using the special tool to hold the crankshaft pulley, tighten the bolt in 4 stages:
^ Stage 1: Tighten to 120 Nm (89 ft. lbs.)
^ Stage 2: Loosen one full turn.
^ Stage 3: Tighten to 50 Nm (37 ft. lbs.)
^ Stage 4: Tighten an additional 90 degrees.
