Anti-Lock Brake System Control Module Connector

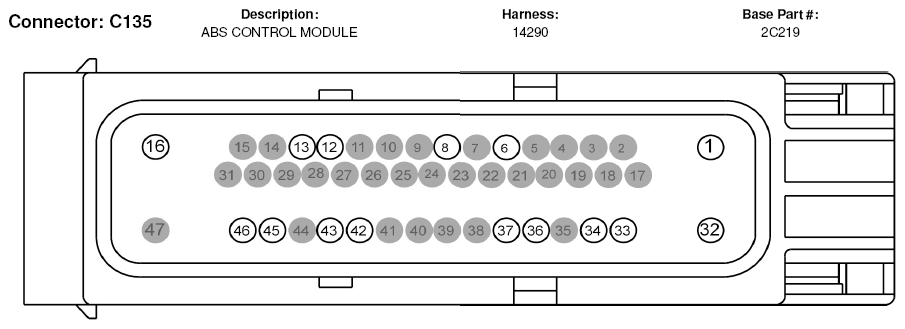

Fig 1: Anti-Lock Brake System Control Module Connector End View (C135) (1 Of 2)
G05180565Courtesy of FORD MOTOR CO.

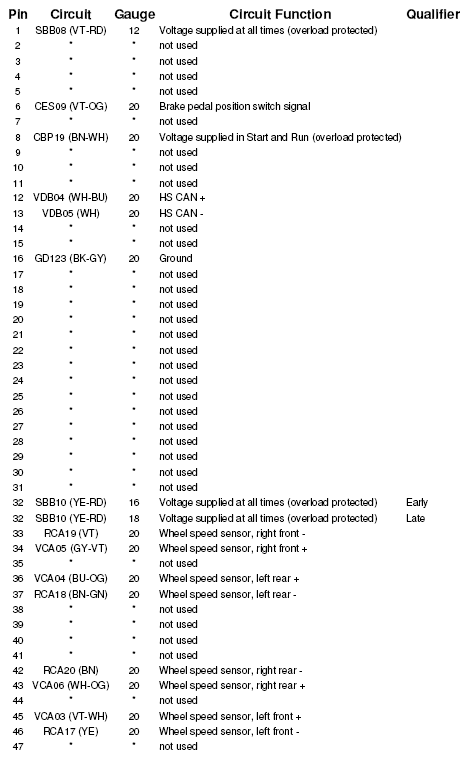

Fig 2: Anti-Lock Brake System Control Module Connector End View (C135) (2 Of 2)
G05180566Courtesy of FORD MOTOR CO.
