Window Control Switch: Notes

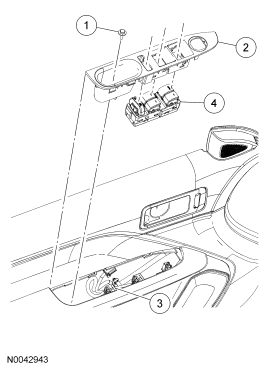

Fig 1: Exploded View Of Window Control Switch
GF0028413Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Screw
2 - Window control switch bezel
3 - Electrical connector (3 required)
4 - Window control switch
