Restraints Control Module (RCM): Notes

Special Tools

Illustration Tool Name Tool Number
GF0000049
Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

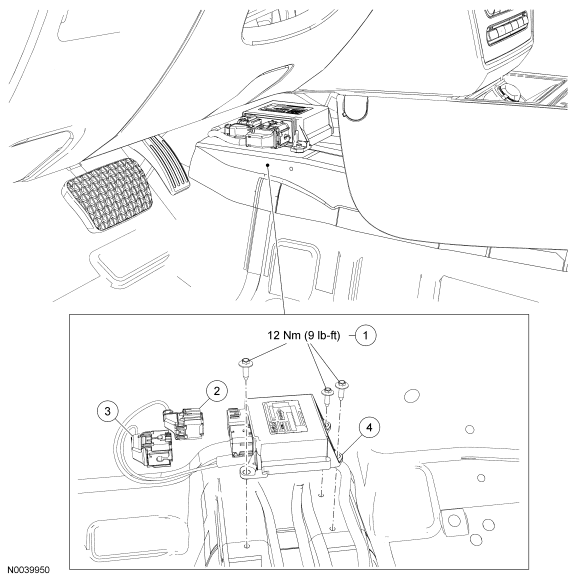

Fig 1: Exploded View Of Restraints Control Module (RCM) With Torque Specification
GF0028618Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707722 Restraints control module (RCM) bolts (3 required)
2 - RCM small connector (part of 14A005)
3 - RCM large connector (part of 14A005)
4 14B321 RCM
