Seat - Exploded View, Front

NOTE: Driver backrest shown, passenger backrest similar.

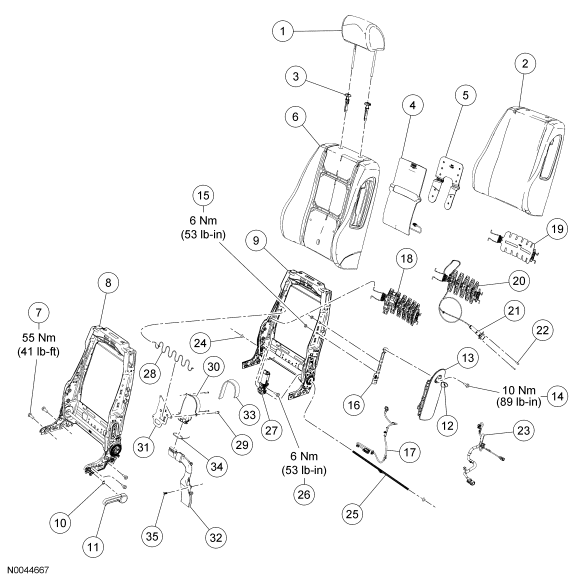

Fig 1: Exploded View Of Front Seat Backrest, Without Fold-Flat With Torque Specifications
GF0028306Courtesy of FORD MOTOR CO.
Item Part Number Description
1 611A08 Head restraint
2 64417 Backrest trim cover
3 610A16 Head restraint guides (2 required)
4 14D696 Backrest heater mat (if equipped)
5 19N550 Backrest manifold, climate controlled seat (if equipped)
6 64811 Backrest foam pad
7 W500632 Backrest-to-cushion bolt (4 required)
8 61018 Backrest frame (with manual recliner) (if equipped)
9 608A15 Backrest frame (with power recliner) (if equipped)
10 - Spring clip, recliner handle (part of 61199) (if equipped)
11 61199 Handle, recliner (if equipped)
12 - Cover, side air bag module bolt (part of 611D11) (if equipped)
13 611D11 Side air bag module (if equipped)
14 N605892 Bolt, side air bag module (if equipped)
15 N620480 Nut, side air bag bracket (2 required) (if equipped)
16 611D79 Side air bag bracket (if equipped)
17 14K155 Wiring harness, side air bag (if equipped)
18 65500 Lumbar assembly, power (if equipped)
19 64842 Lumbar assembly, static (if equipped)
20 65500 Lumbar assembly, manual (if equipped)
21 610C01 Manual lumbar control (if equipped)
22 - Rivet, manual lumbar control (2 required) (if equipped)
23 14C693 Wiring harness, power seat backrest (if equipped)
24 - Pal nut, recliner torque shaft (2 required)
25 613A68 Recliner torque shaft
26 W790022 Bolt, recliner motor (if equipped)
27 14547 Recliner motor (if equipped)
28 64646 Upper support spring
29 - Rivet, climate controlled seat TED (3 required) (if equipped)
30 19N550 TED assembly (if equipped)
31 18D583 Bracket, TED assembly (if equipped)
32 18D507 Exhaust duct, climate controlled seat TED assembly (if equipped)
33 - Filter, climate controlled seat TED assembly (if equipped)
34 - Tie strap
35 W790002 Pin-type retainer
NOTE: Optional backrest on passenger seat only.

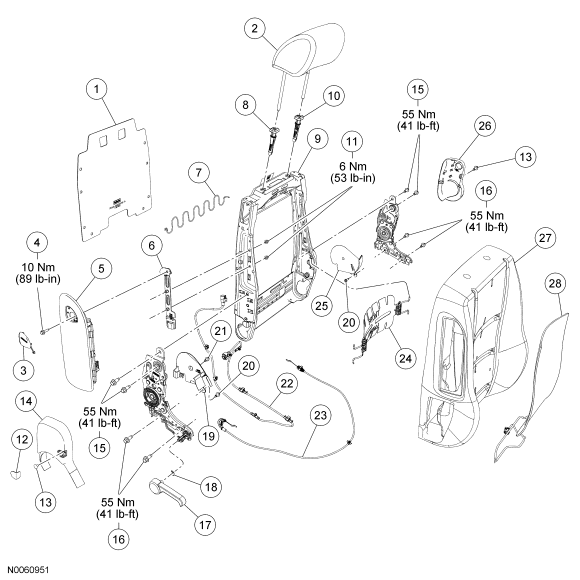

Fig 2: Exploded View Of Front Seat Backrest, With fold-flat With Torque Specifications
GF0028307Courtesy of FORD MOTOR CO.
Item Part Number Description
1 60770 Hard back panel
2 611A08 Head restraint
3 - Cover, side air bag module bolt (part of 611D10) (if equipped)
4 N605892 Bolt, side air bag module (if equipped)
5 611D10 Side air bag module (if equipped)
6 611D78 Side air bag bracket (if equipped)
7 64646 Upper support spring
8 610A18 Head restraint guide
9 60136 Backrest frame
10 610A16 Head restraint guide
11 N620480 Nuts, side air bag bracket (2 required) (if equipped)
12 - RH recliner outboard cover retainer cover
13 W790016 Recliner outboard cover retainer (2 required)
14 63174 RH recliner outboard cover
15 W500632 Recliner-to-backrest frame bolts (4 required)
16 W500632 Recliner-to-cushion frame bolts (4 required)
17 61198 Handle, recliner (if equipped)
18 - Spring clip, recliner handle (part of 61198) (if equipped)
19 63174 RH recliner inboard cover
20 W790016 Pin-type retainer (2 required)
21 W790016 Screw (2 required)
22 14K155 Wiring harness, side air bag (if equipped)
23 62648 Recliner cable
24 64842 Lumbar assembly, static
25 63175 LH recliner inboard cover
26 63175 LH recliner outboard cover
27 64810/- Backrest foam pad/backrest trim cover
28 14D696 Backrest heater mat (if equipped)
NOTE: Power seat track shown, manual seat track similar.

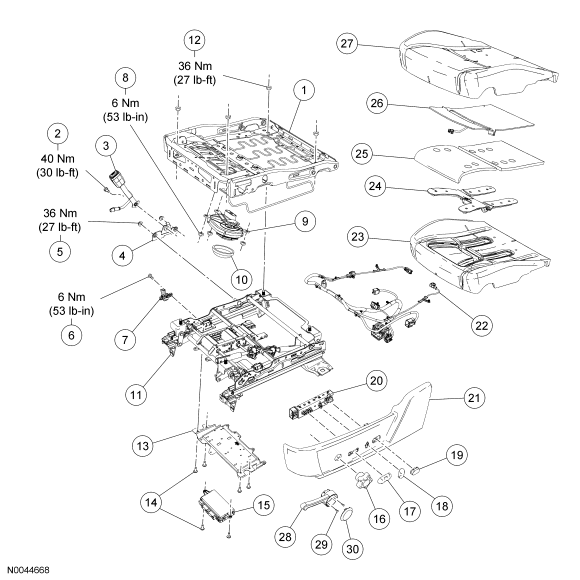

Fig 3: Exploded View Of Driver Seat Cushion With Torque Specifications
GF0028308Courtesy of FORD MOTOR CO.
Item Part Number Description
1 63101 Cushion frame
2 - Bolt, safety belt buckle (part of 61203)
3 61203 Safety belt buckle
4 - Safety belt buckle bracket
5 W520113 Nut, safety belt buckle bracket-to-seat track (2 required)
6 W505256-S Bolt, seat position sensor (part of 61203) (driver only)
7 14B416 Seat position sensor (driver only)
8 N620480 Nut, climate controlled seat thermo-electric device (TED) (3 required) (if equipped)
9 19N550 Cushion TED, climate controlled seat (if equipped)
10 19E880 Cushion TED filter (if equipped)
11 61711 Seat track
12 W520113 Seat track-to-cushion frame nuts (4 required)
13 610E34 Electrical bracket
14 - Pop rivets (4 required)
15 14C708 Driver seat module (DSM) (if equipped)
16 62622 Manual lumbar control knob (if equipped)
17 14711 Seat control switch knob (if equipped)
18 14711 Power recline switch knob (if equipped)
19 14711 Power lumbar switch knob (if equipped)
20 14A701 Seat control switch (if equipped)
21 62187 Cushion side shield
22 14A699 Driver seat wire harness
23 632A23 Cushion foam pad
24 19N550 Manifold, climate controlled seat (if equipped)
25 632A23 Cushion insert (if equipped)
26 14D696 Cushion heater mat (if equipped)
27 62900 Cushion trim cover
28 61753 Manual height adjust handle (if equipped)
29 W711217 Screw, manual height adjust handle (if equipped)
30 62768 Cover, manual height adjust handle (if equipped)
NOTE: Power seat track shown, manual seat track similar.

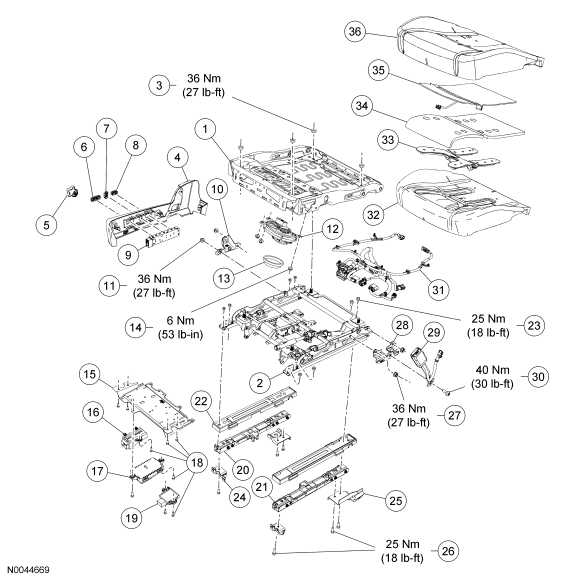

Fig 4: Exploded View Of Passenger Seat Cushion With Torque Specifications
GF0028309Courtesy of FORD MOTOR CO.
Item Part Number Description
1 63100 Cushion frame
2 61710 Seat track
3 W520113 Seat track-to cushion frame nuts (4 required)
4 62186 Cushion side shield
5 62622 Manual lumbar control knob (if equipped)
6 14711 Seat control switch knob (if equipped)
7 14711 Power recline switch knob (if equipped)
8 14711 Power lumbar switch knob (if equipped)
9 14A701 Seat control switch (if equipped)
10 - Safety belt anchor bracket
11 W520113 Nut, safety belt anchor bracket (2 required)
12 19N550 Cushion thermo-electric device (TED), climate controlled seat (if equipped)
13 19E880 Cushion TED filter (if equipped)
14 N620480 Nut, cushion TED (3 required) (if equipped)
15 610E34 Electrical bracket
16 14C724 Heated seat module (if equipped)
17 14C724 Dual climate controlled seat module (DCSM) (if equipped)
18 31134/31147 Pop rivets (quantity varies with seat option)
19 14B422 Occupant classification sensor (OCS) module
20 61708 OCS rail, outboard
21 61709 OCS rail, inboard
22 62126/62127 OCS rail shield (2 required)
23 W712479 OCS rail-to-seat track bolts (8 required)
24 61912/61913 Seat riser, front (2 required)
25 61912/61913 Seat riser, rear (2 required)
26 - Bolts, seat riser-to-seat track (6 required)
27 W520113 Nut, safety belt buckle bracket (2 required)
28 - Safety belt buckle bracket
29 61202 Safety belt buckle
30 - Bolt, safety belt buckle (part of 61202)
31 14A698 Passenger seat wire harness
32 632A22 Cushion foam pad
33 19N550 Cushion manifold, climate controlled seat (if equipped)
34 - Cushion insert (if equipped)
35 14D698 Cushion heater mat (if equipped)
36 62900 Cushion trim cover
  1. For additional information, refer to the appropriate procedures.
