Keypad Switch Assembly Connector

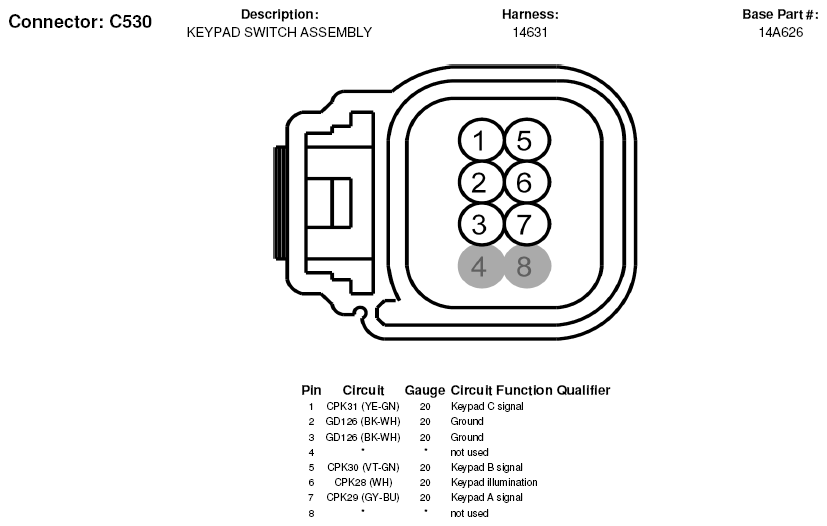

Fig 1: Keypad Switch Assembly Connector End View (C530)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
