Block Heater: Notes

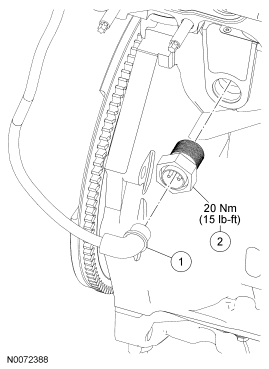

Fig 1: Exploded View Of Block Heater With Torque Specification - 2.3L
GF0029349Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6B018 Block heater electrical connector
2 6A051 Block heater

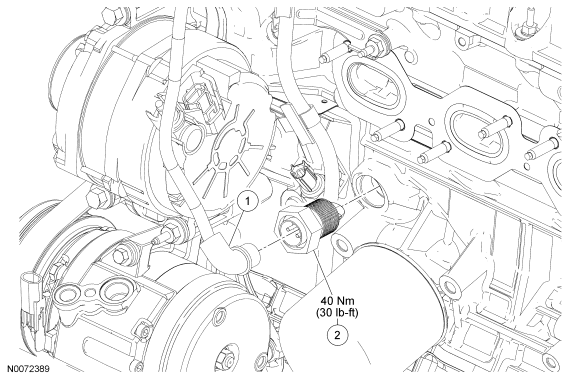

Fig 2: Exploded View Of Block Heater With Torque Specification - 3.0L
GF0029350Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6B018 Block heater electrical connector
2 6A051 Block heater
Fig 3: Exploded View Of Block Heater With Torque Specification - 3.5L
GF0029351Courtesy of FORD MOTOR CO.
Item Part Number Description
1 030104 Block heater cover
2 6B018 Block heater electrical connector
3 6A051 Block heater
