Active Torque Control Coupling Connector

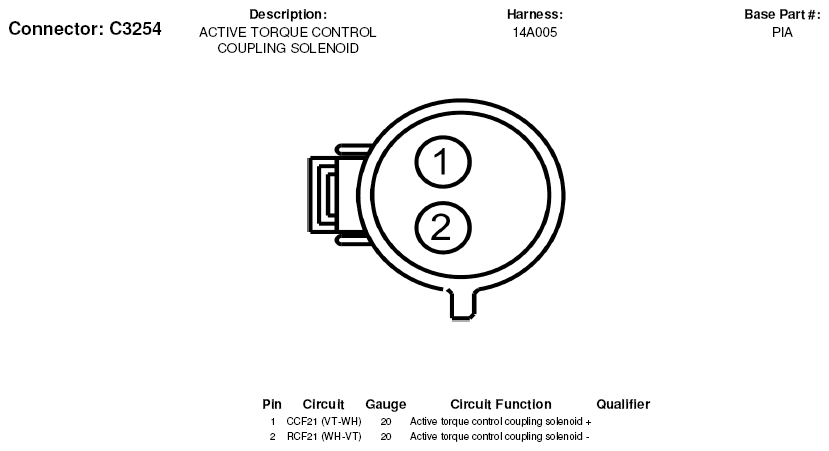

Fig 1: Active Torque Control Coupling Connector End View (C3254)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
