Antenna Module Connector

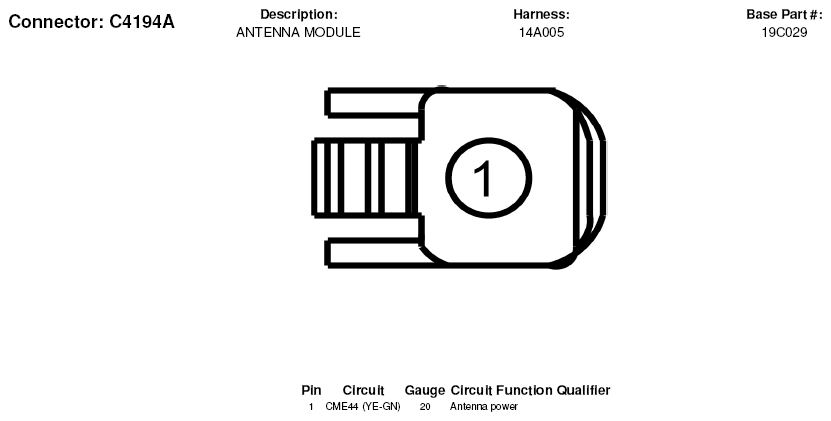

Fig 1: Antenna Module Connector End View (C4194A)
G05180904Courtesy of FORD MOTOR CO.

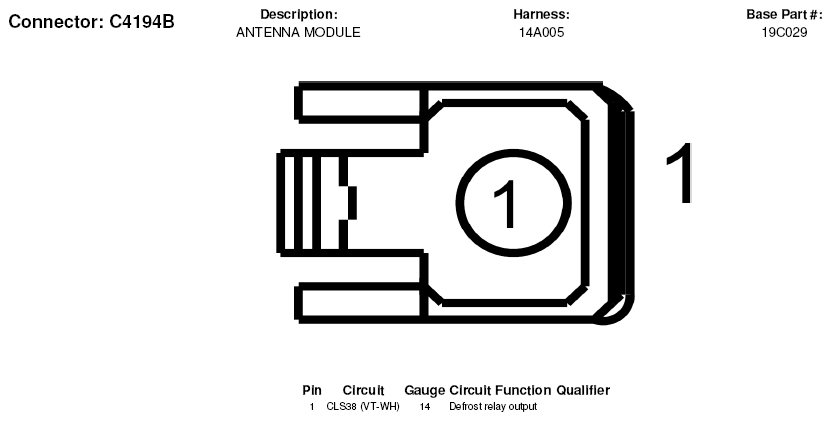

Fig 2: Antenna Module Connector End View (C4194B)
G05180905Courtesy of FORD MOTOR CO.
