Driver Door Module Connectors

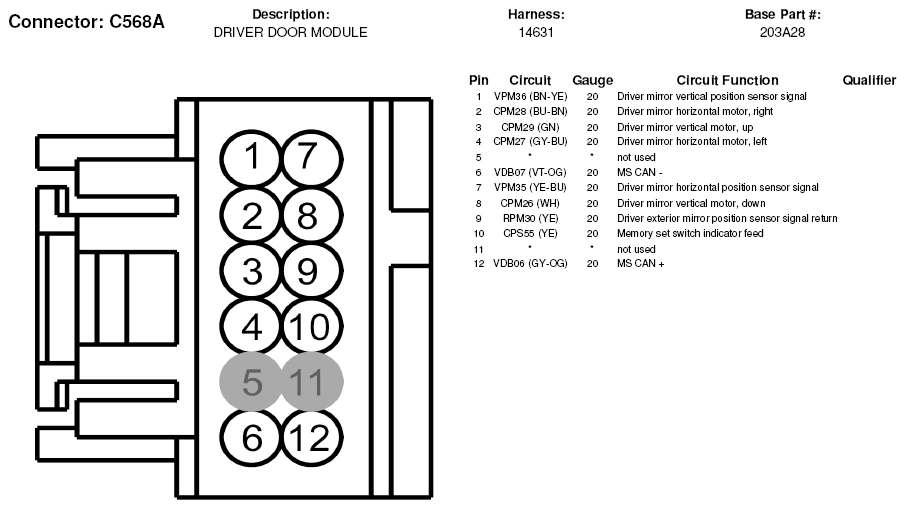

Fig 1: Driver Door Module Connector End View (C568A)
G05180723Courtesy of FORD MOTOR CO.

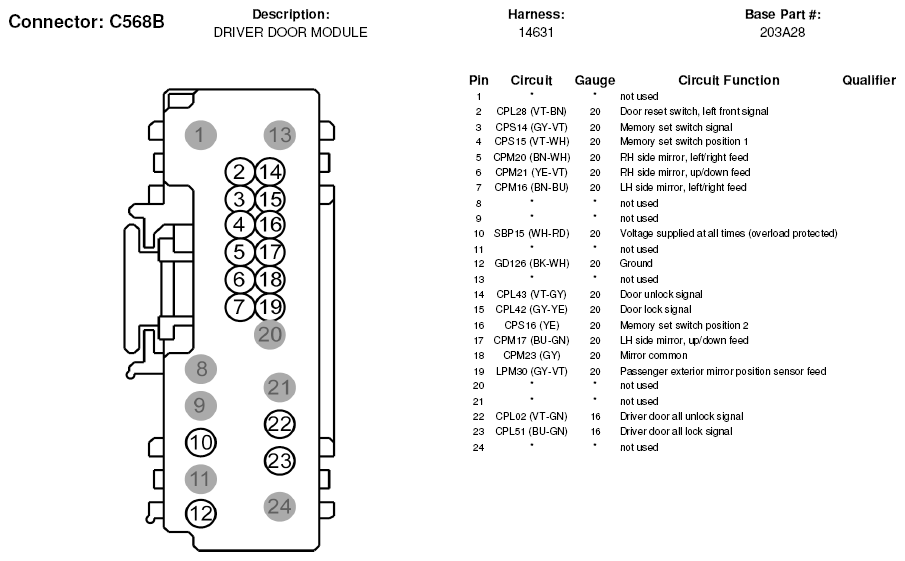

Fig 2: Driver Door Module Connector End View (C568B)
G05180724Courtesy of FORD MOTOR CO.
