Dual Automatic Temperature Control Connector

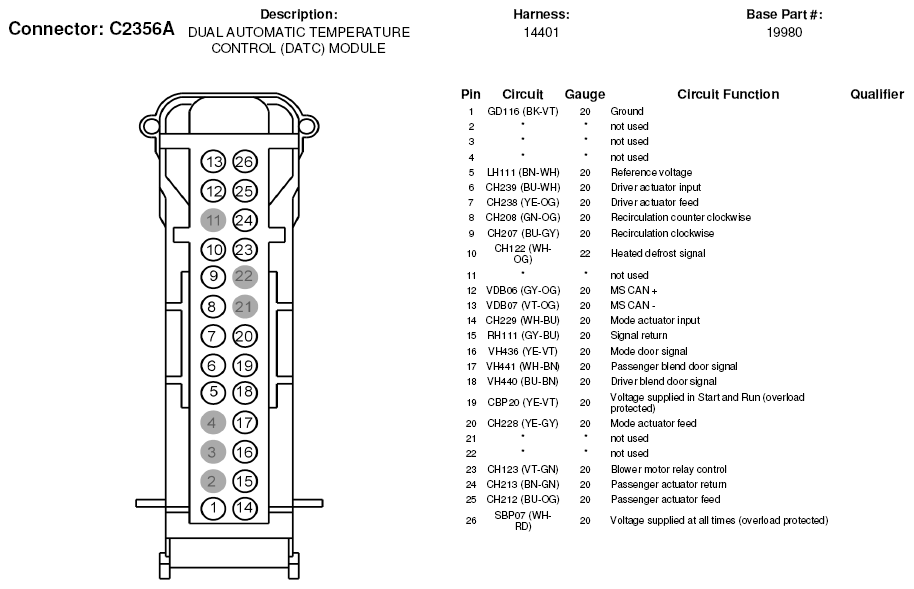

Fig 1: Dual Automatic Temperature Control Connector End View (C2356A)
Courtesy of FORD MOTOR CO.

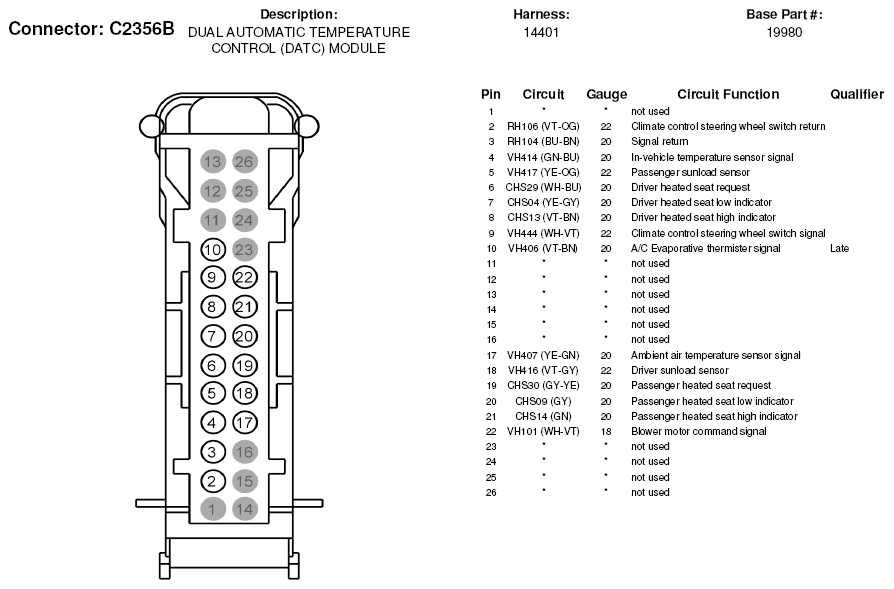

Fig 2: Dual Automatic Temperature Control Connector End View (C2356B)
Courtesy of FORD MOTOR CO.
