Intake Manifold Runner Control Connector

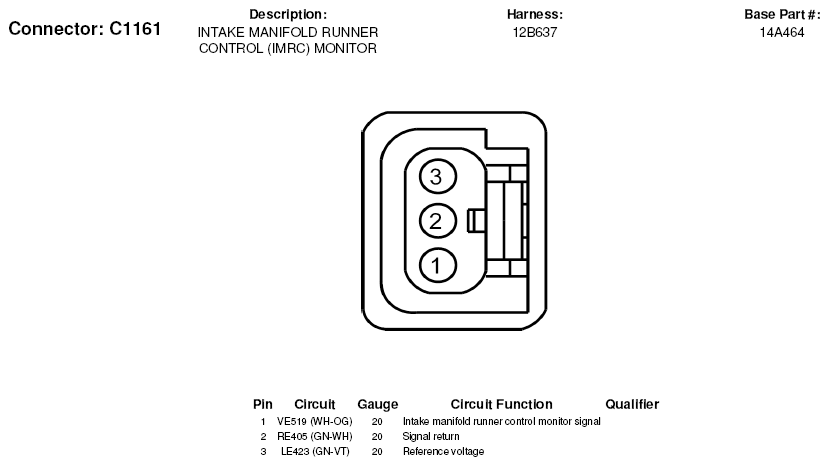

Fig 1: Intake Manifold Runner Control Connector End View (C1161)
Courtesy of FORD MOTOR CO.

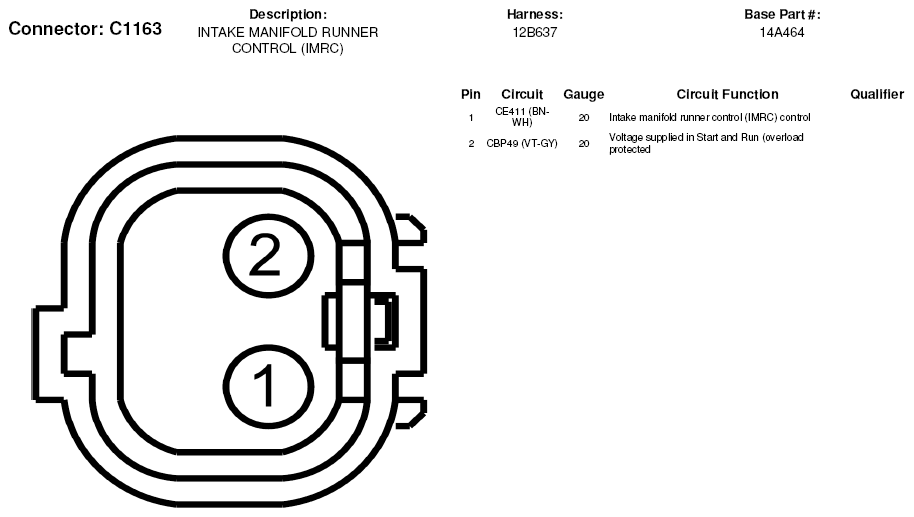

Fig 2: Intake Manifold Runner Control Connector End View (C1163)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
