Rail Sensor Connector

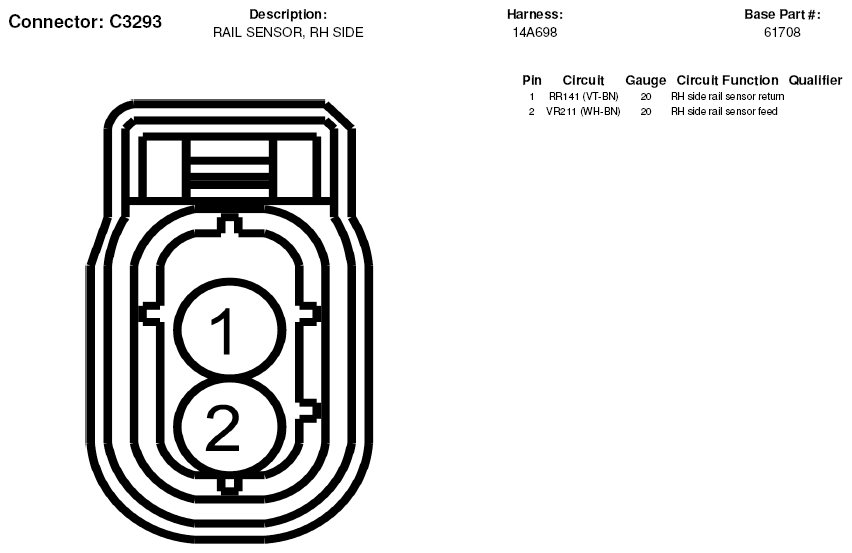

Fig 1: Rail Sensor Connector End View (C3293)
G05180876Courtesy of FORD MOTOR CO.
Fig 2: Rail Sensor Connector End View (C3294)
G05180877Courtesy of FORD MOTOR CO.
