Side Air Curtain Module Connector

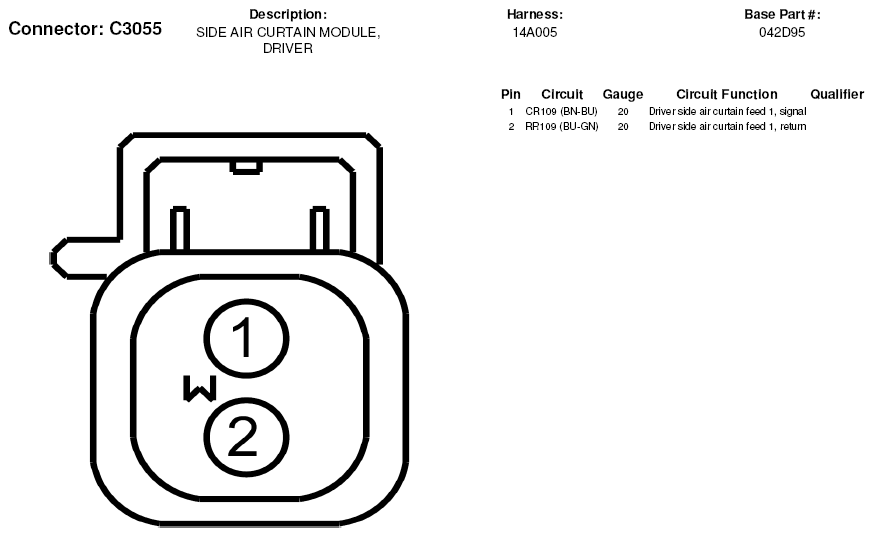

Fig 1: Side Air Curtain Module Connector End View (C3055)
Courtesy of FORD MOTOR CO.

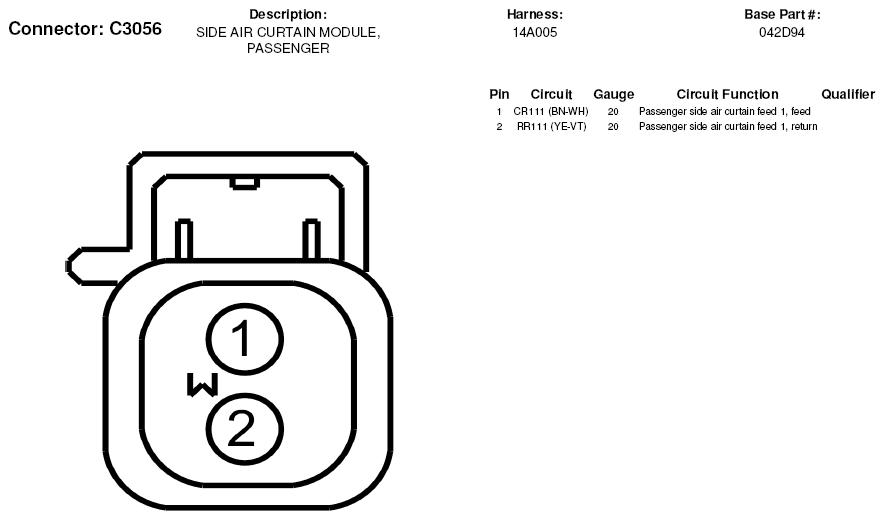

Fig 2: Side Air Curtain Module Connector End View (C3056)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
