Automatic Transmission Connector

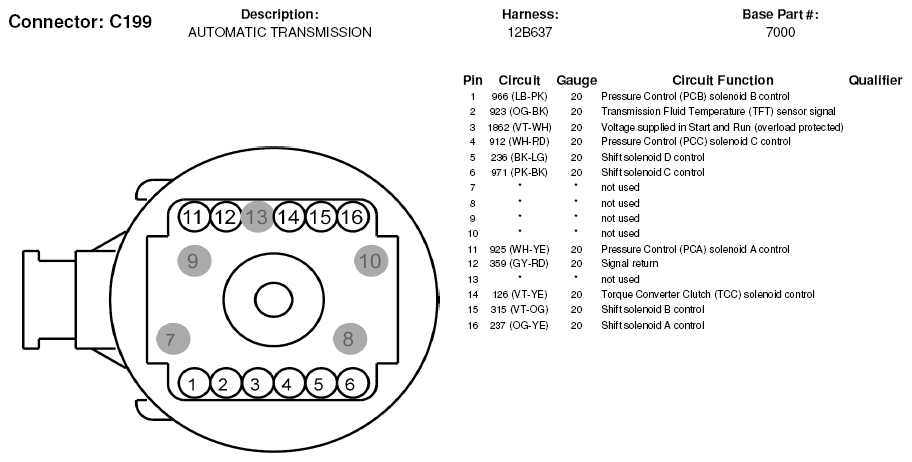

Fig 1: Automatic Transmission Connector End View (C199)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
