Instrument Cluster: Notes

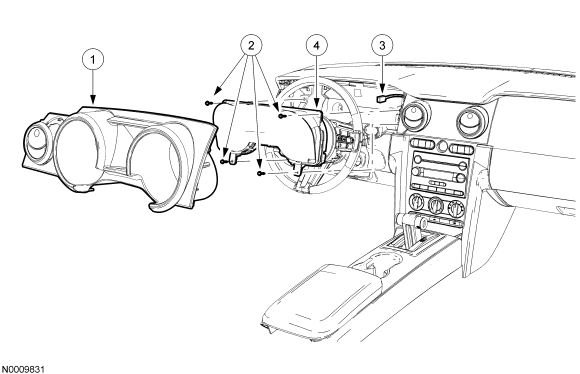

Fig 1: 7Identifying Instrument Cluster Components
GF0016059Courtesy of FORD MOTOR CO.
Item Part Number Description
1 63044D70 Instrument cluster finish panel
2 W705314 Instrument cluster screws (4 required)
3 - Instrument cluster electrical connector (part of 14401)
4 10849 Instrument cluster
