Engine Ignition Components - Exploded View

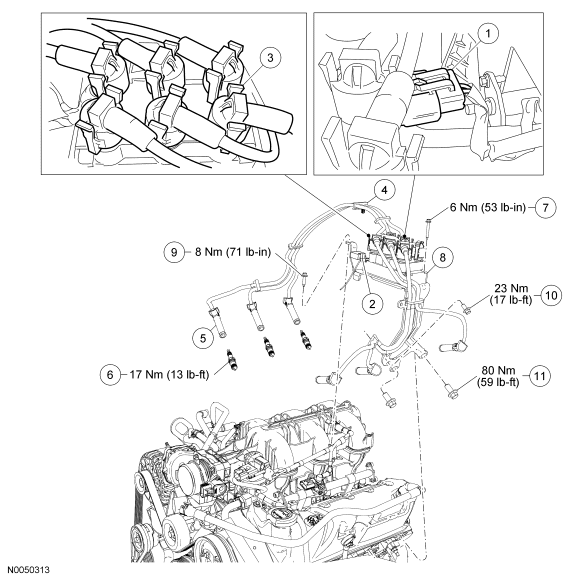

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Ignition coil electrical connector
2	18801	Radio ignition interference capacitor
3	12286	Spark plug wire-to-ignition coil
4	12297	Spark plug wire retainer
5	12286	Spark plug wire-to-spark plug (6 required)
6	12405	Spark plug (6 required)
7	W706216	Ignition coil bolt (4 required)
8	12029	Ignition coil
9	W500214	Ignition coil bracket-to-intake manifold bolt (2 required)
10	W500023	Ignition coil bracket-to-cylinder head bolt (M8)
11	W500041	Ignition coil bracket-to-cylinder head bolt (2 required) (M12)
