Electronic Throttle Control Motor Connector

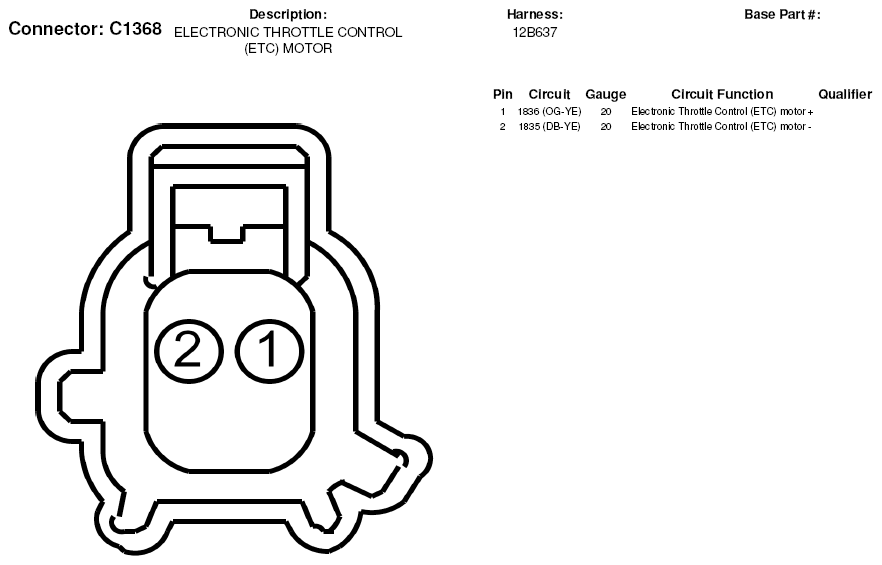

Fig 1: Electronic Throttle Control Motor Connector End View (C1368)
G05183329Courtesy of FORD MOTOR CO.
