Intake Manifold Runner Control Connector

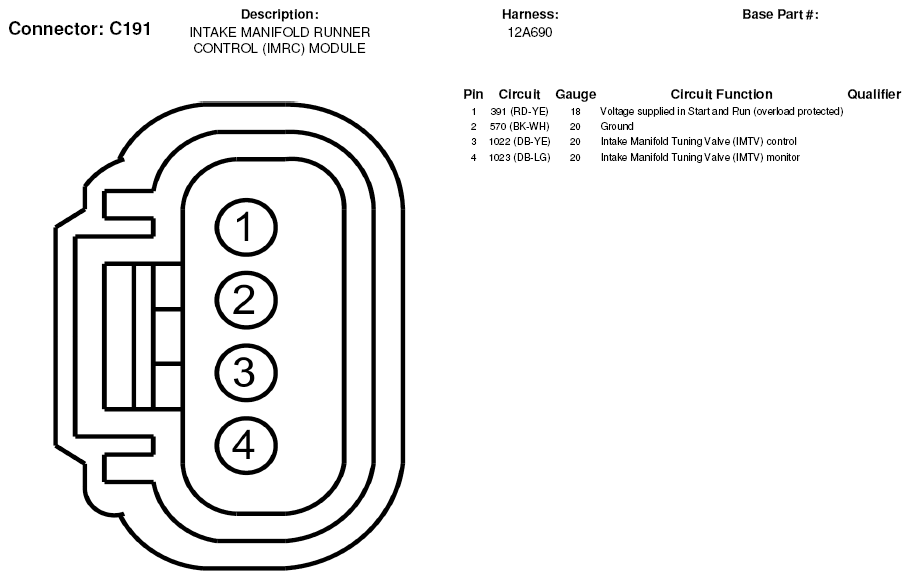

Fig 1: Intake Manifold Runner Control Connector End View (C191)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
