Master Window Adjust Switch Connector

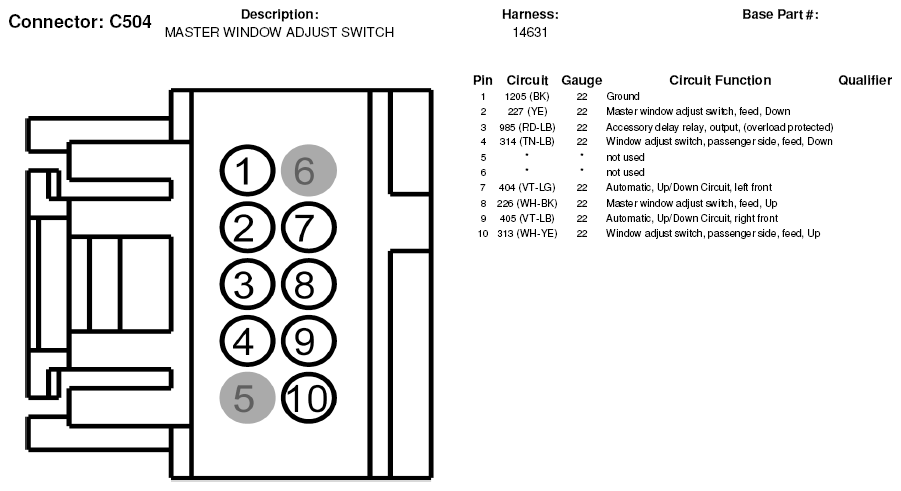

Fig 1: Master Window Adjust Switch Connector End View (C504)
Courtesy of FORD MOTOR CO.
