Smart Junction Box Connector

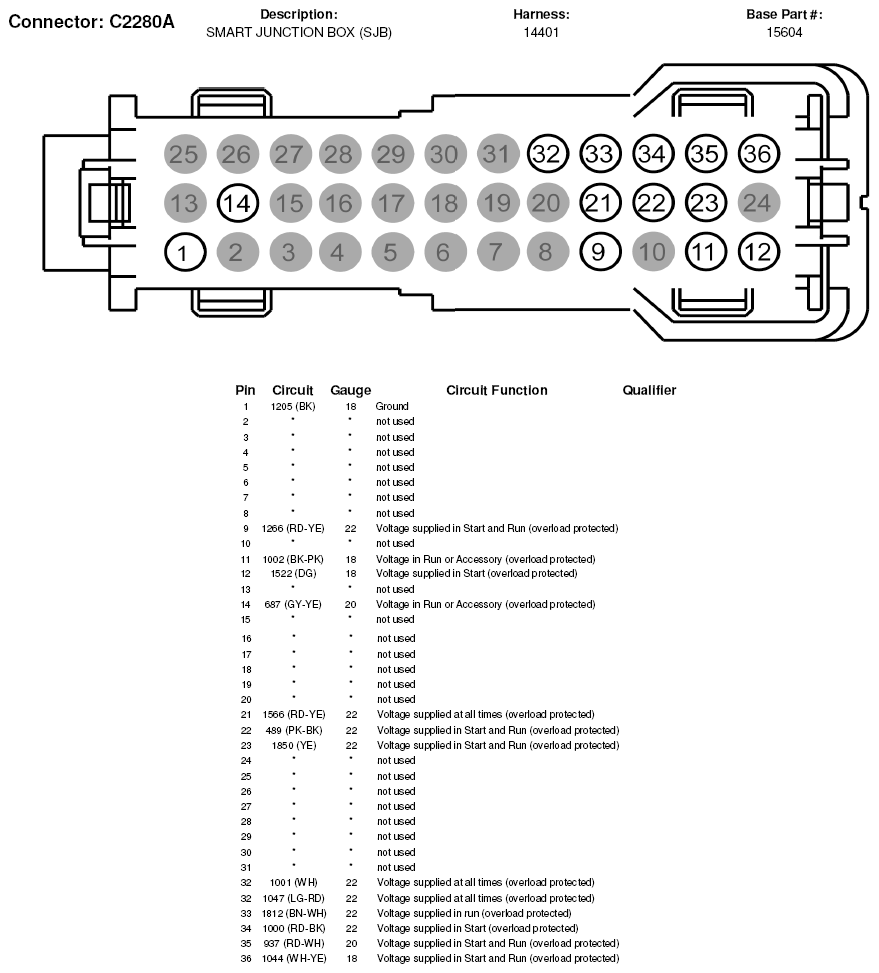

Fig 1: Smart Junction Box Connector End View (C2280A)
G05183345Courtesy of FORD MOTOR CO.

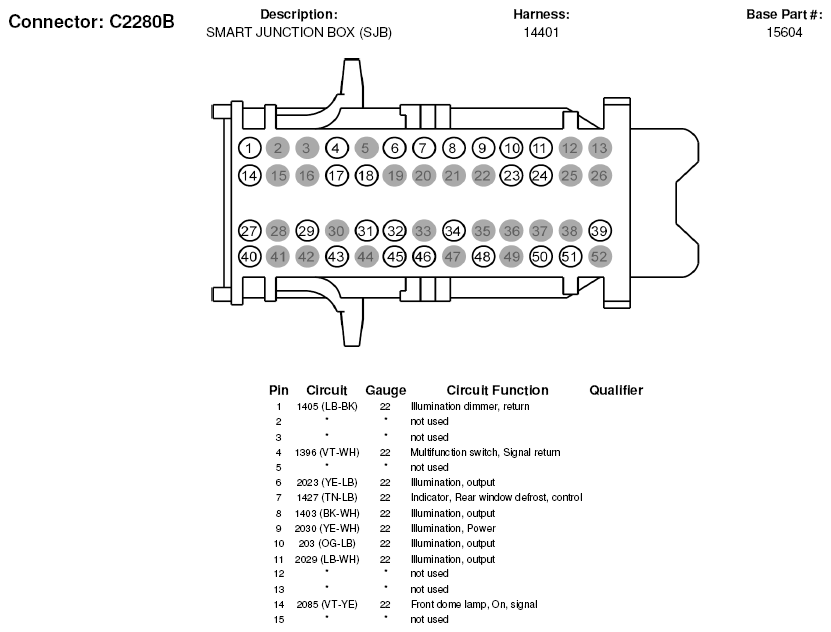

Fig 2: Smart Junction Box Connector End View (C2280B) (1 Of 2)
G05183346Courtesy of FORD MOTOR CO.
Fig 3: Smart Junction Box Connector End View (C2280B) (2 Of 2)
G05183347Courtesy of FORD MOTOR CO.

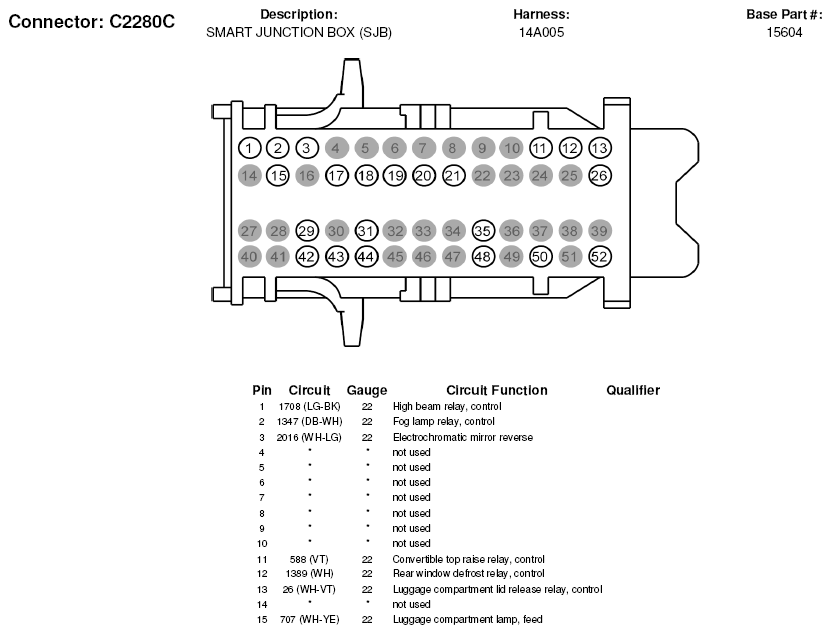

Fig 4: Smart Junction Box Connector End View (C2280C) (1 Of 2)
G05183348Courtesy of FORD MOTOR CO.

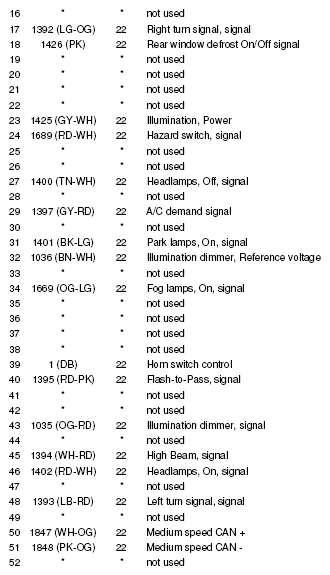

Fig 5: Smart Junction Box Connector End View (C2280C) (2 Of 2)
G05183349Courtesy of FORD MOTOR CO.

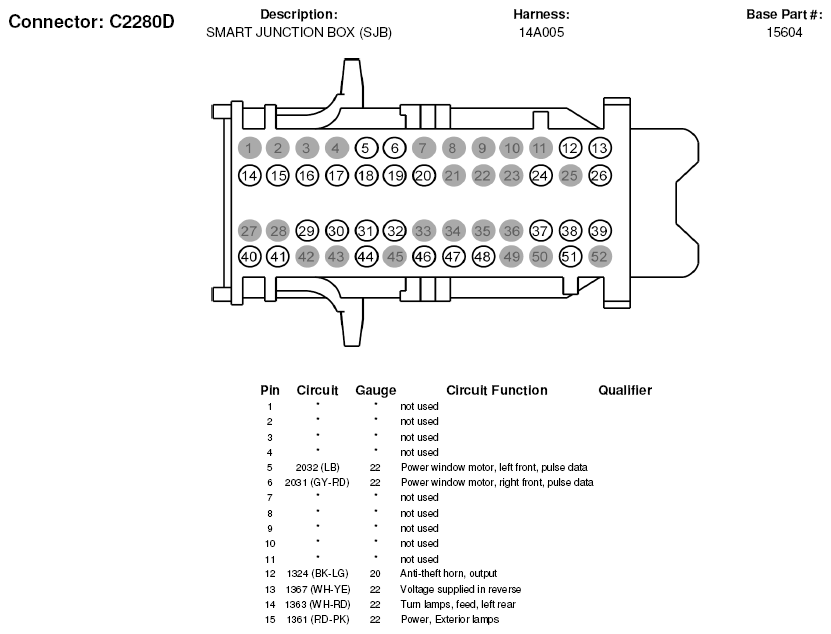

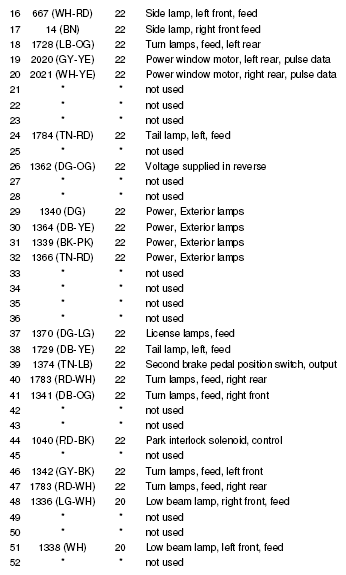

Fig 6: Smart Junction Box Connector End View (C2280D) (1 Of 2)
G05183350Courtesy of FORD MOTOR CO.

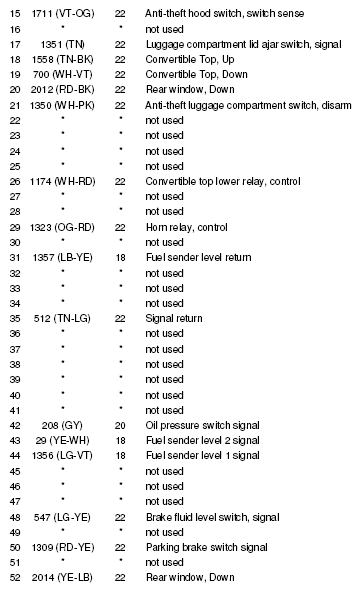

Fig 7: Smart Junction Box Connector End View (C2280D) (2 Of 2)
G05183351Courtesy of FORD MOTOR CO.

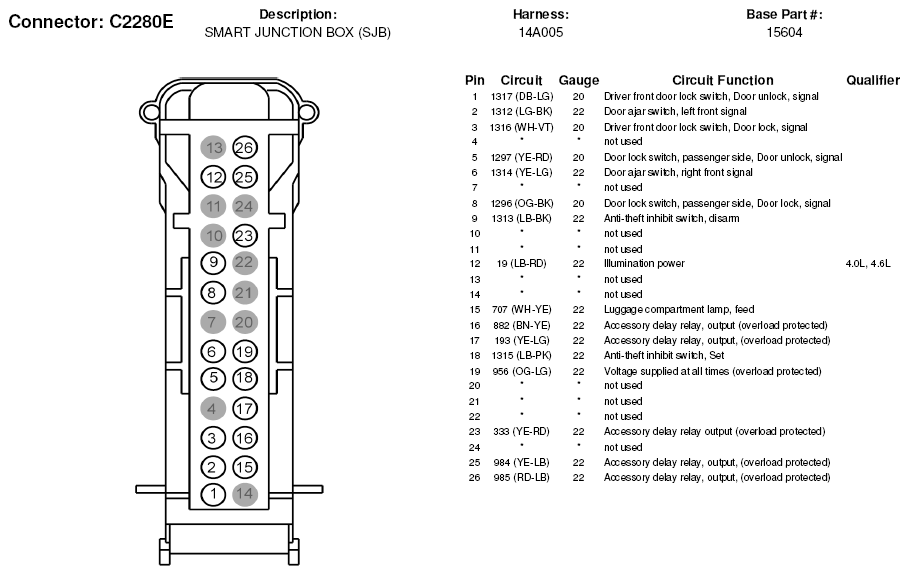

Fig 8: Smart Junction Box Connector End View (C2280E)
G05183352Courtesy of FORD MOTOR CO.

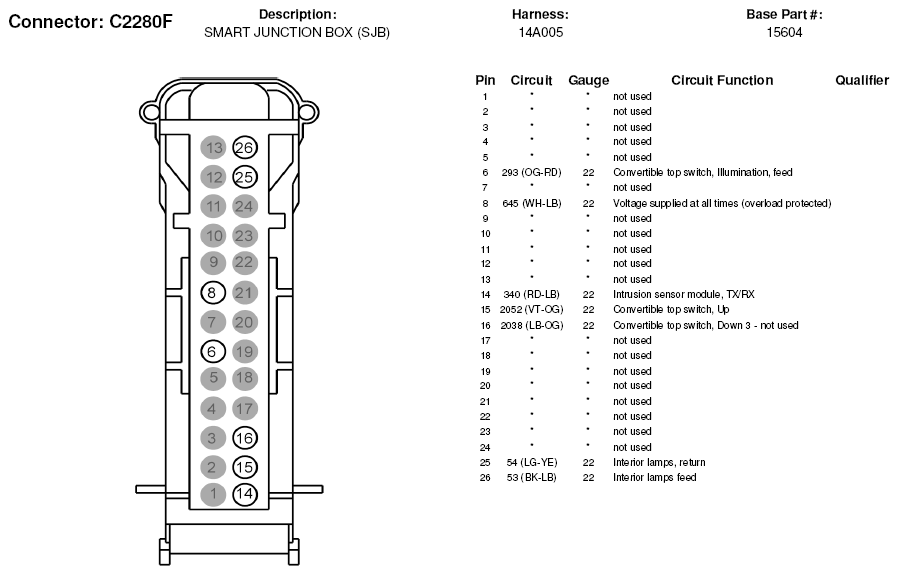

Fig 9: Smart Junction Box Connector End View (C2280F)
G05183353Courtesy of FORD MOTOR CO.

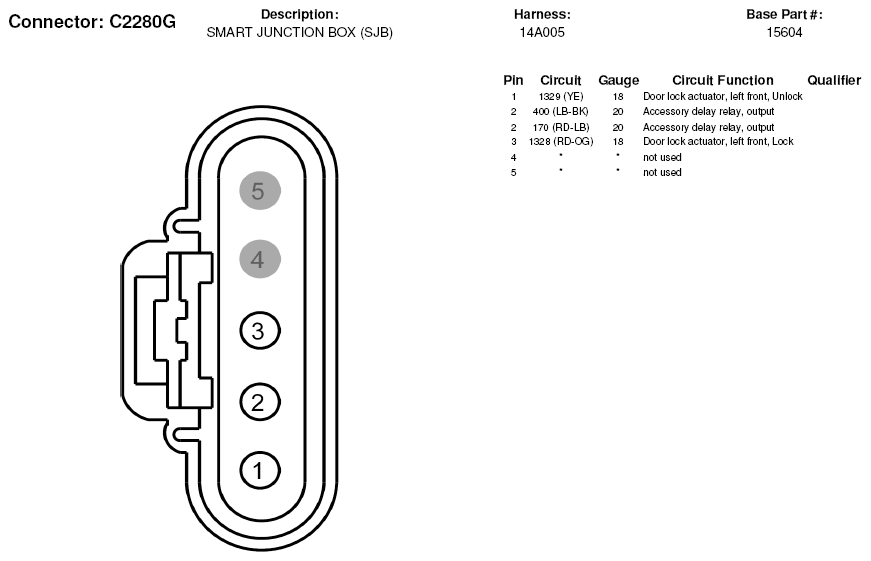

Fig 10: Smart Junction Box Connector End View (C2280G)
G05183354Courtesy of FORD MOTOR CO.

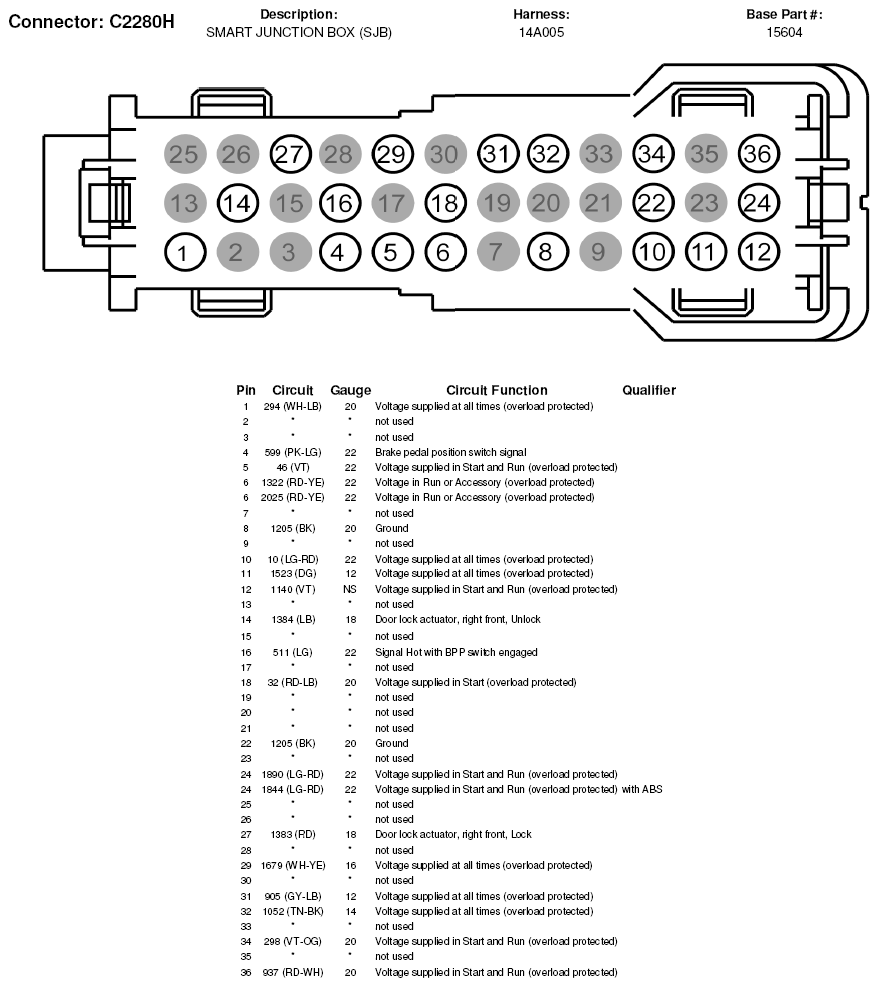

Fig 11: Smart Junction Box Connector End View (C2280H)
G05183355Courtesy of FORD MOTOR CO.
