Smart Junction Box (SJB): Notes

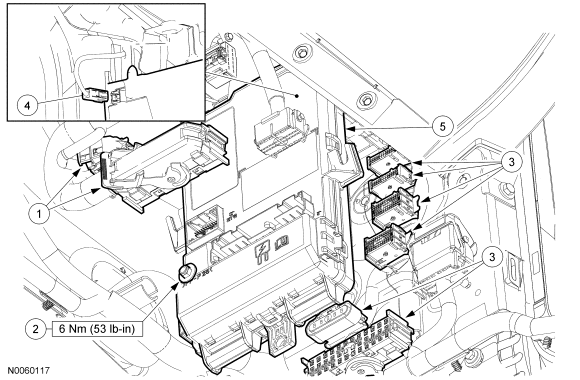

Fig 1: Smart Junction Box (SJB) With Torque Specification
GF0001425Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Front SJB electrical connectors (2 required) (part of 14401)
2 W702751 SJB nut
3 - Rear SJB electrical connectors (6 required) (part of 14A005)
4 - Coaxial antenna
5 14A067 SJB
