Fuel Pump Driver Module (FPDM): Notes

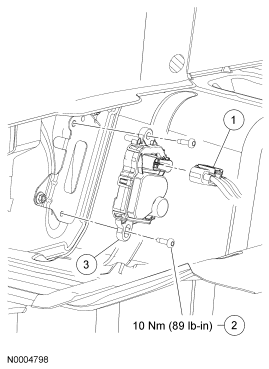

Fig 1: Fuel Pump Driver Module With Torque Specifications (FPDM)
GF0000648Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Fuel pump driver module (FPDM) electrical connector (part of 14A005)
2 W504755 FPDM bolt (2 required)
3 9D370 FPDM
