Door Lock Switch Connector

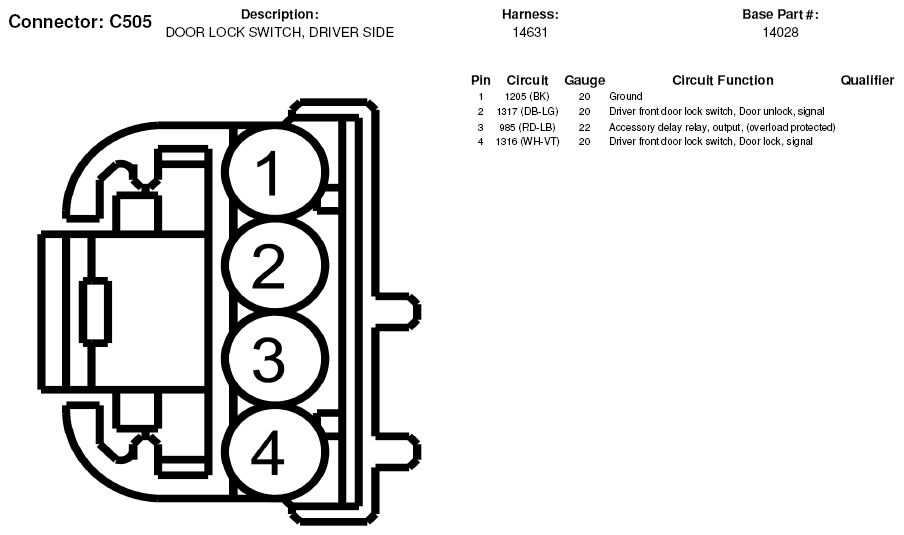

Fig 1: Door Lock Switch Connector End View (C505)
G05183270Courtesy of FORD MOTOR CO.

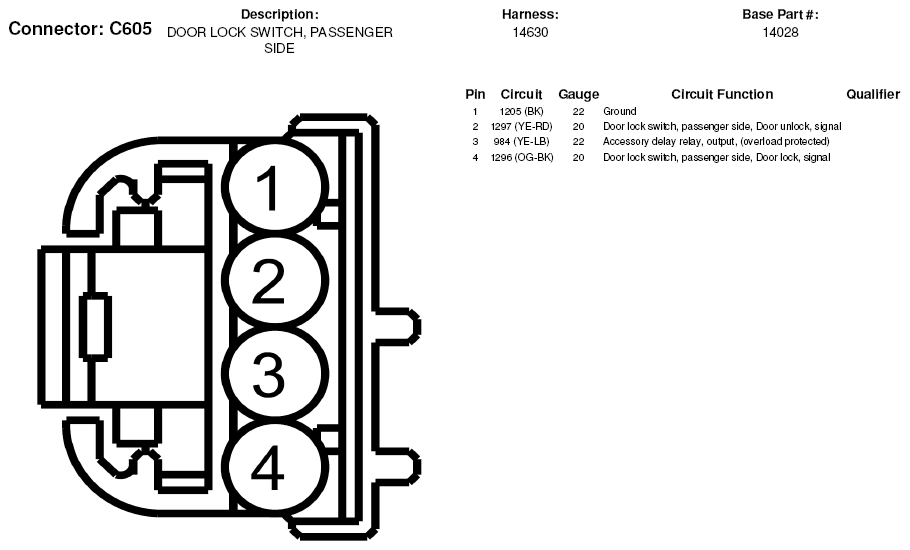

Fig 2: Door Lock Switch Connector End View (C605)
G05183283Courtesy of FORD MOTOR CO.
