Engine Lubrication

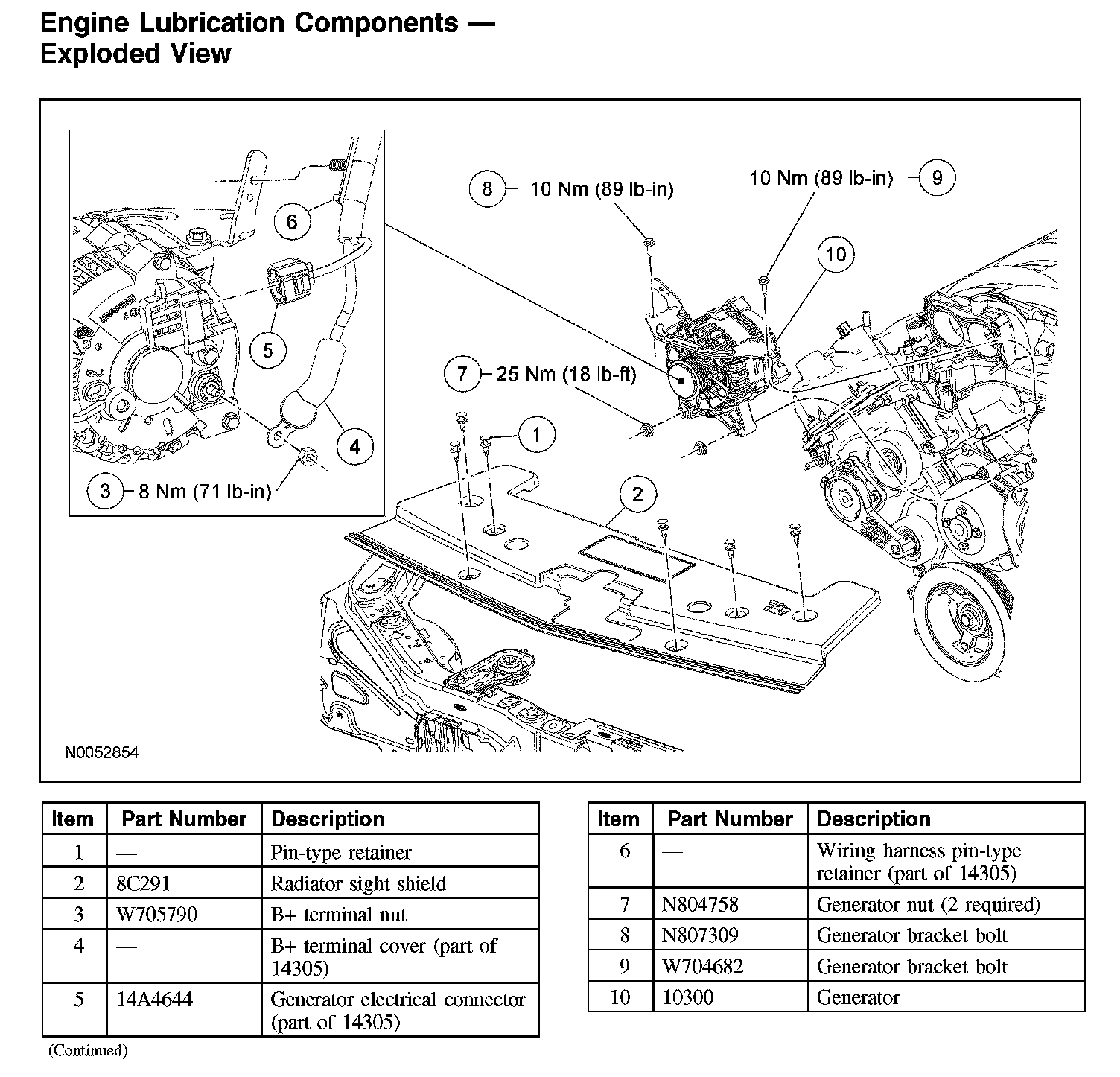

Engine Lubrication Components - Exploded View:



Engine Lubrication Components - Exploded View:

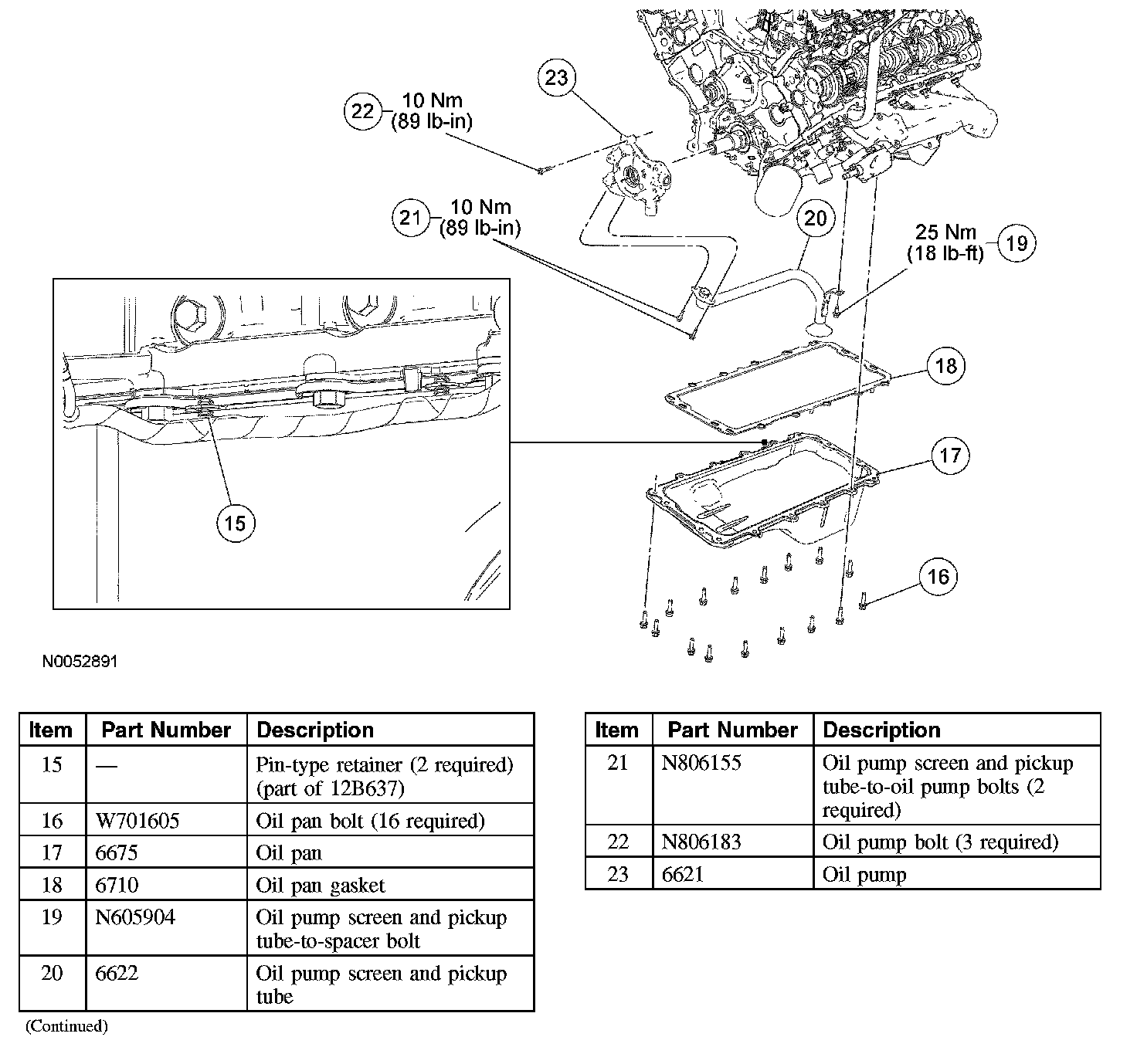

Engine Lubrication Components - Exploded View:
