System Specifications

Timing chain hydraulic tensioner bolts 25 Nm (18 ft. lbs.)

Crankshaft pulley bolt
Stage 1: 90 Nm (66 ft. lbs.)
Stage 2: Loosen 360 degrees
Stage 3: 50 Nm (37 ft. lbs.)
Stage 4: additional 90 degrees

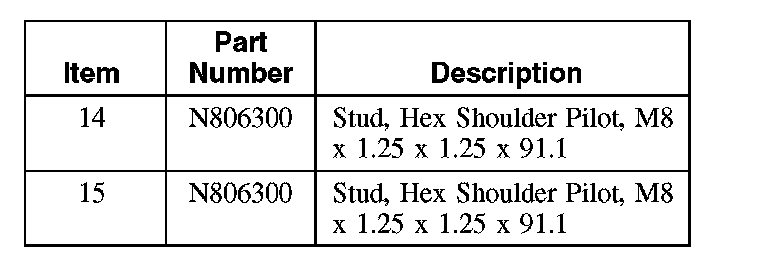

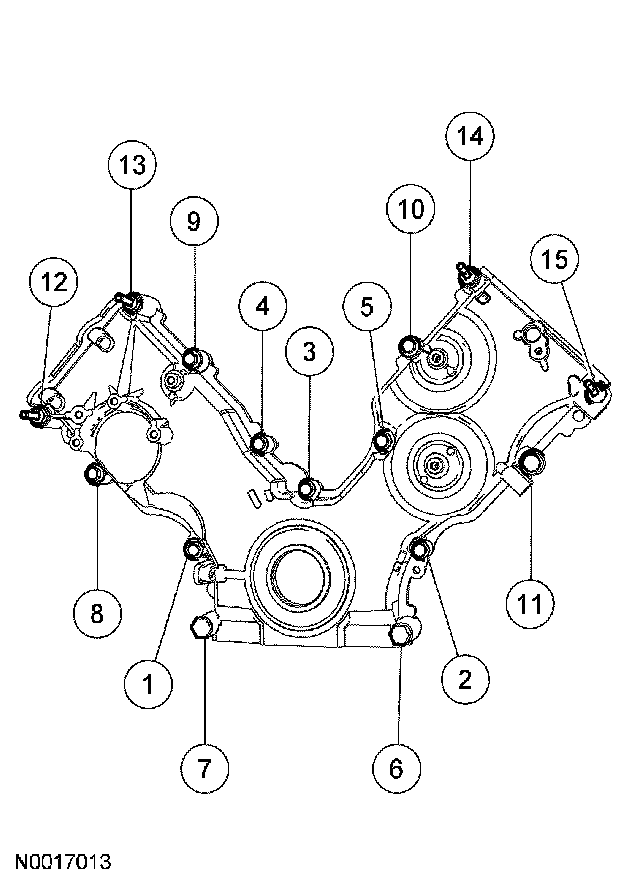

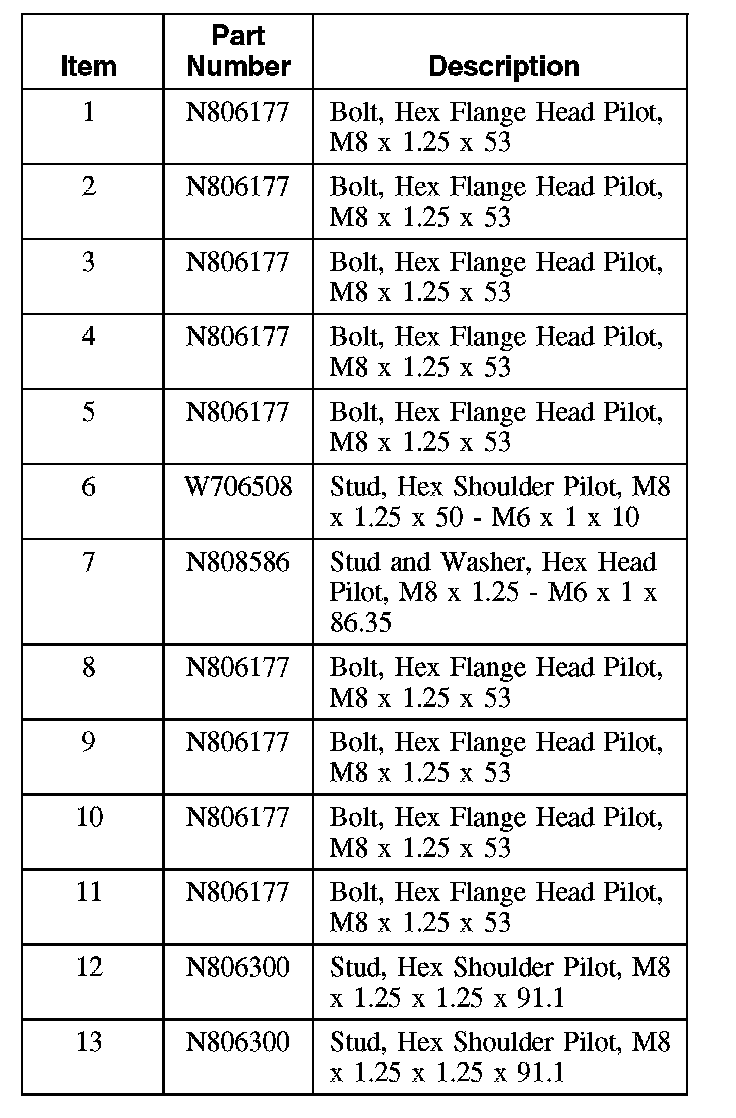

Engine front cover bolts 25 Nm (18 ft. lbs.)











Stage 1: 20 Nm (15 ft. lbs.)
Stage 2: additional 60 degrees
