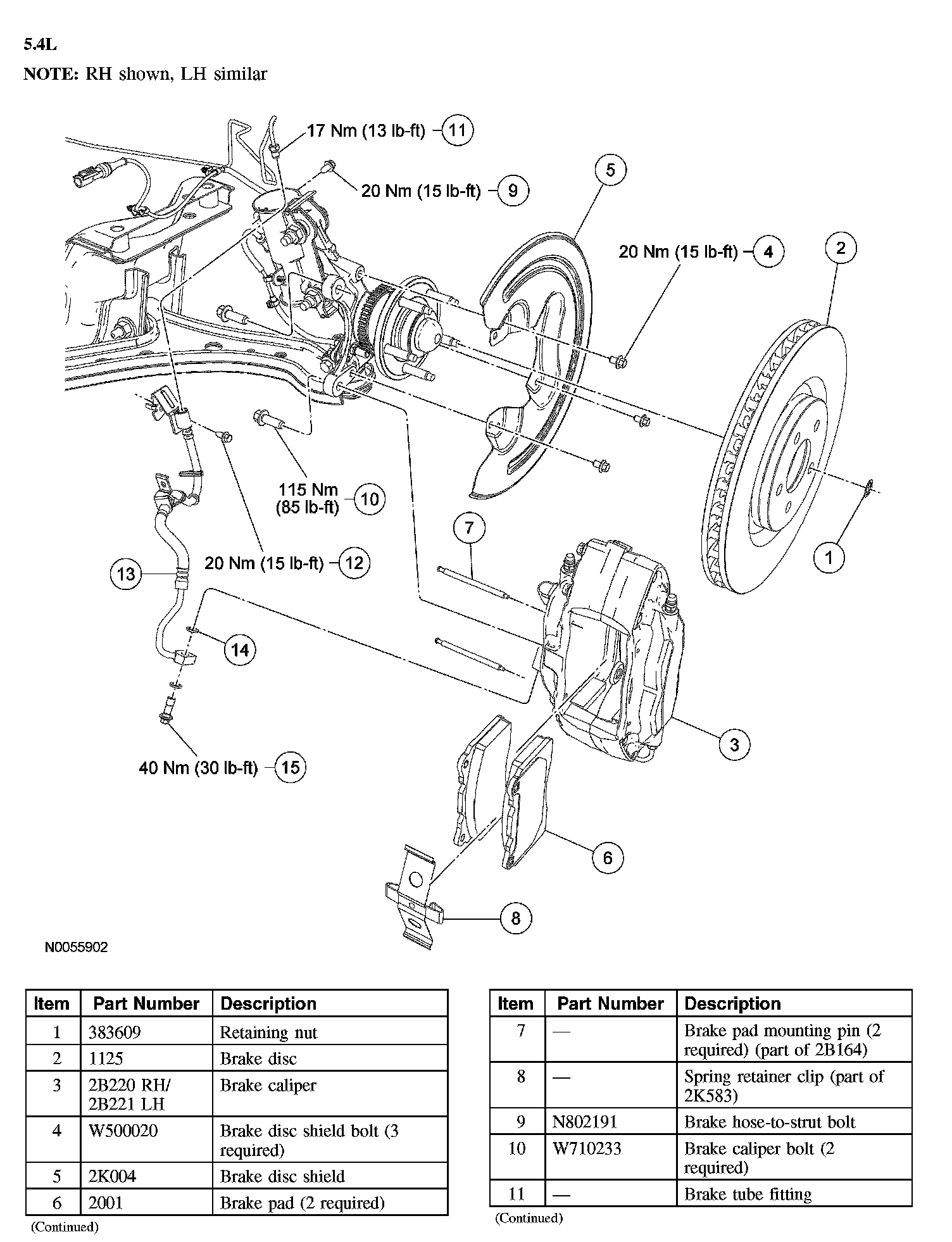

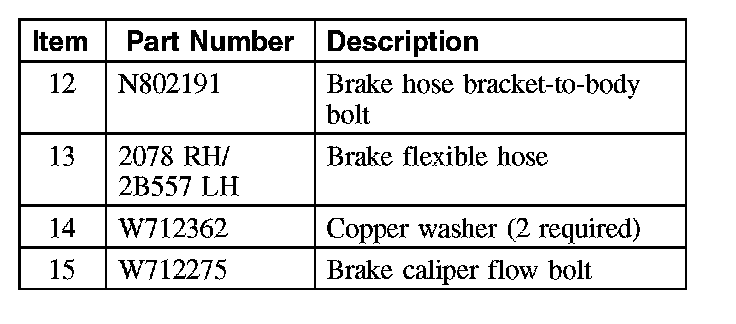

Disc Brake System - Exploded View

Disc Brake System - Exploded View:

Disc Brake System - Exploded View:

1. NOTE: A revised part, with the same base part number, has been released for the RH brake hose. When installing a new RH brake hose, position the anti-rotation tab on the mounting bracket toward the front of the vehicle and install the bolt with the head toward the rear of the vehicle.
