Exhaust System

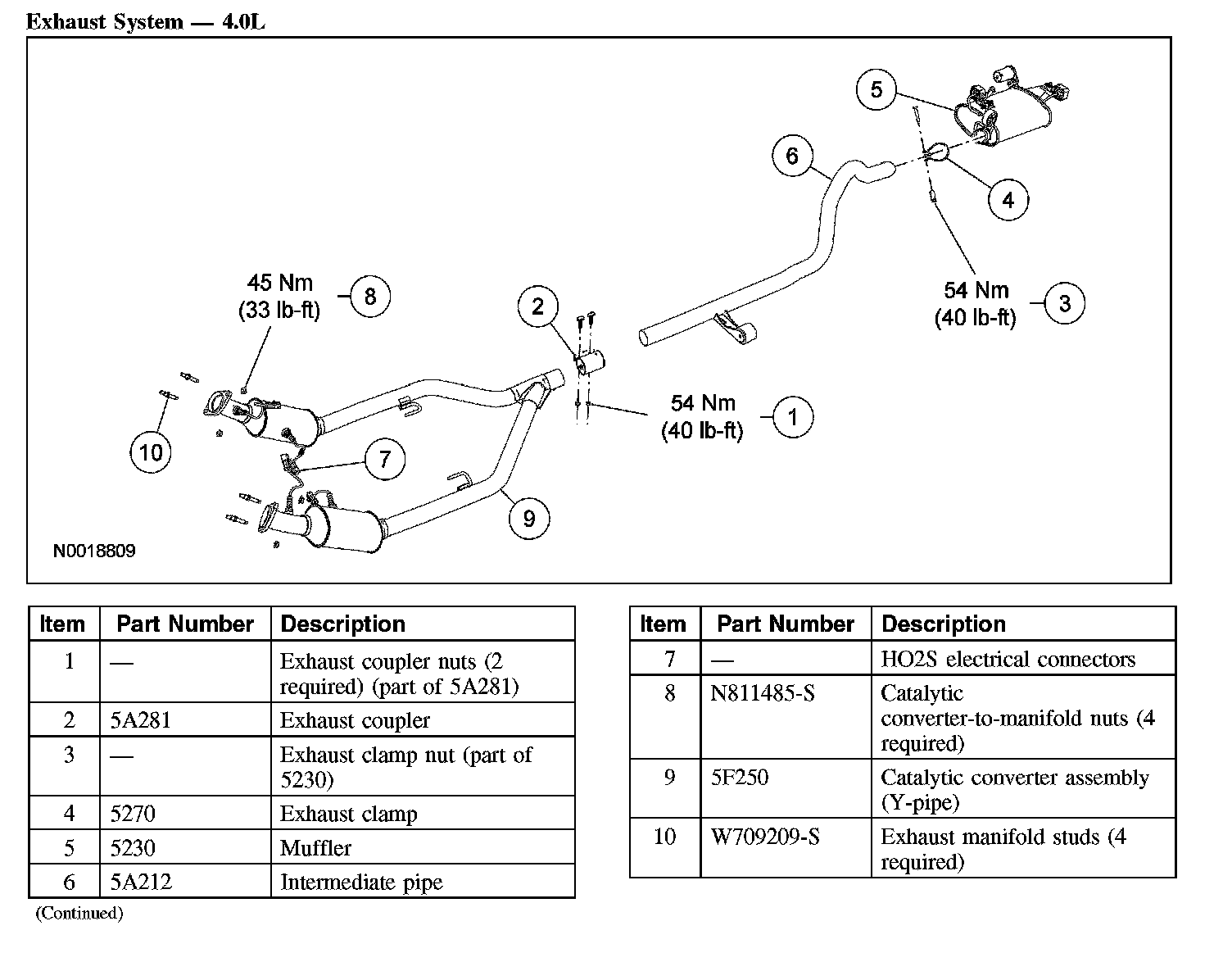

Exhaust System - 4.0L:

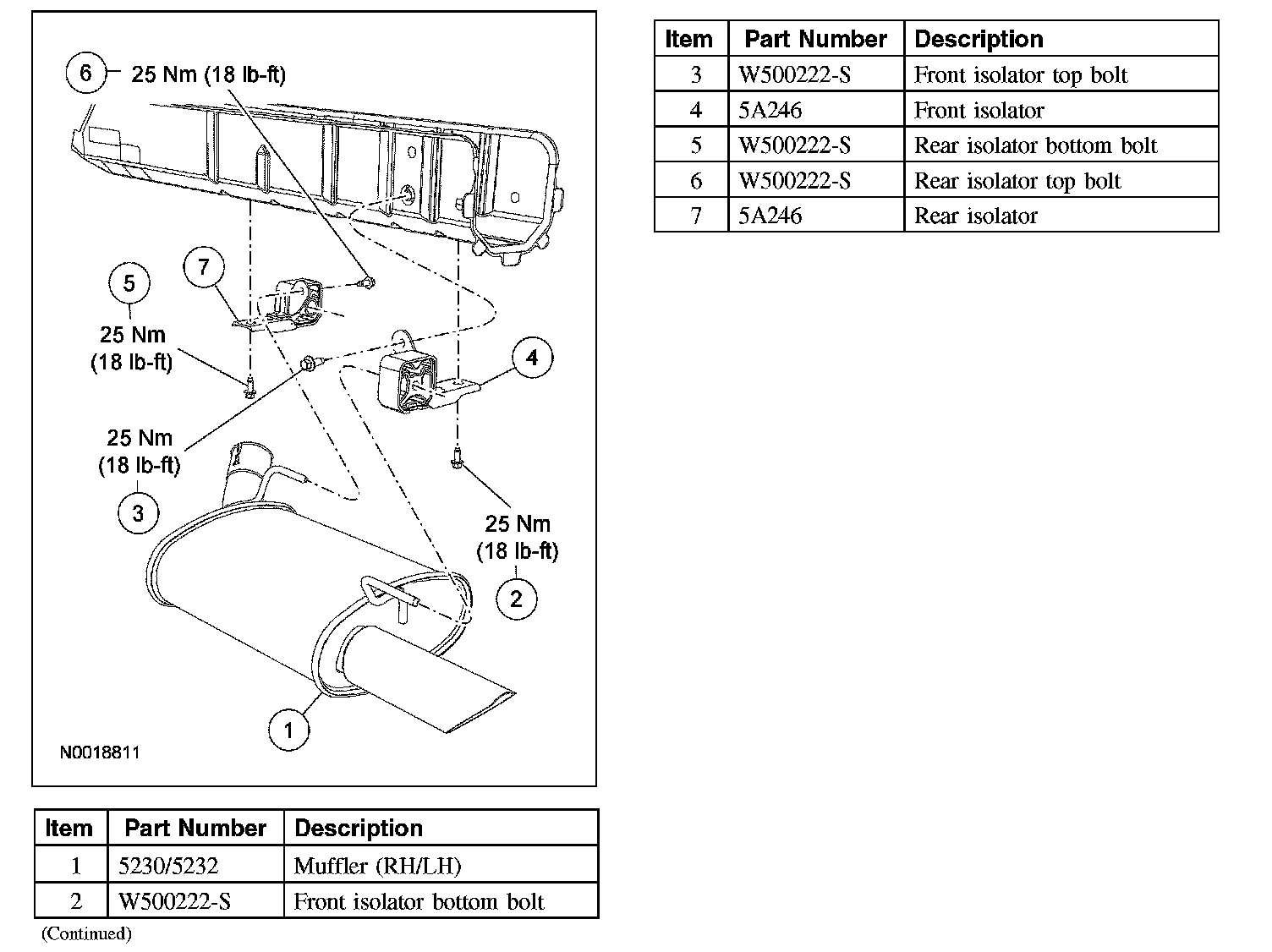

Exhaust System - 4.0L:

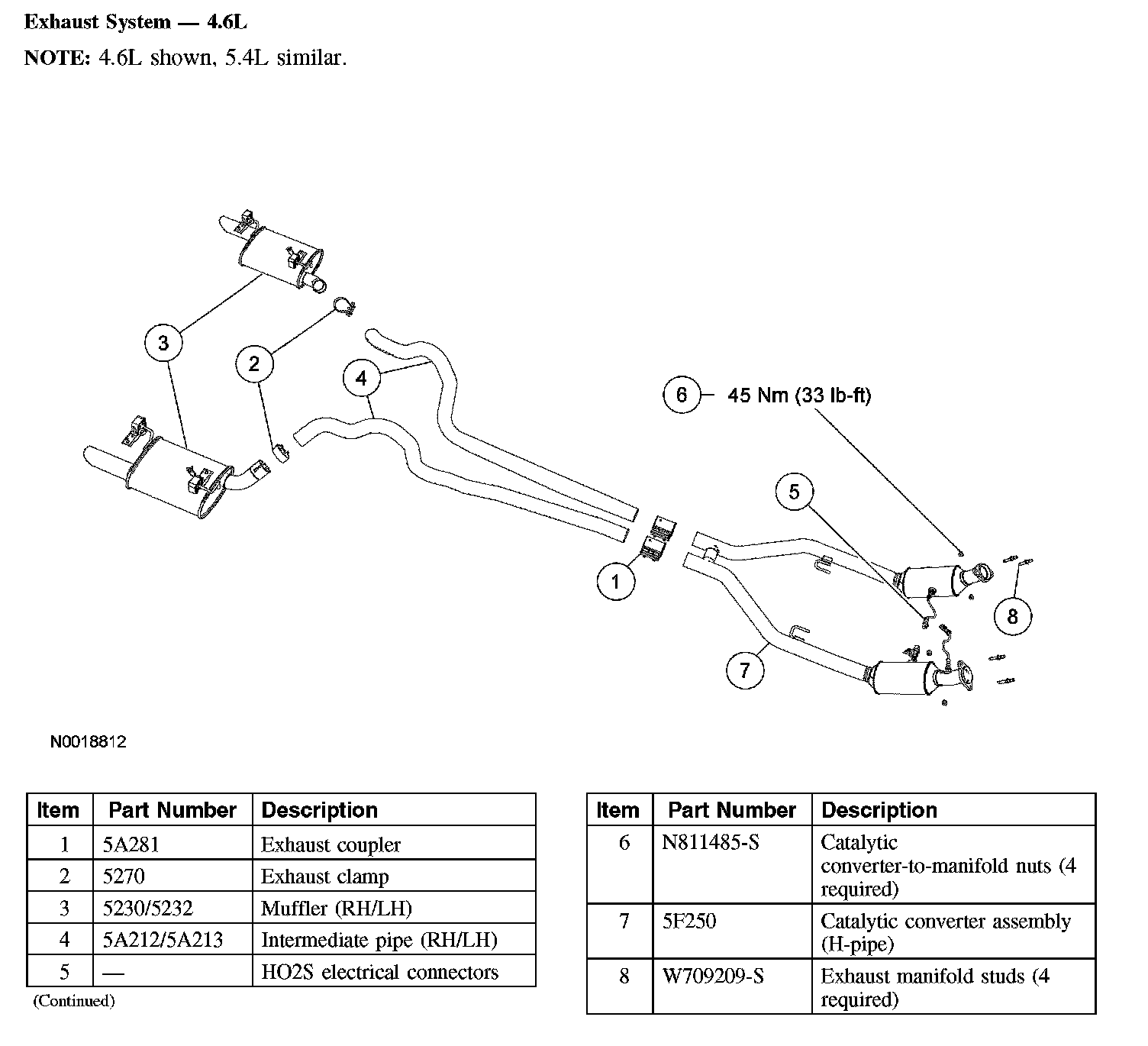

Exhaust System - 4.6L:

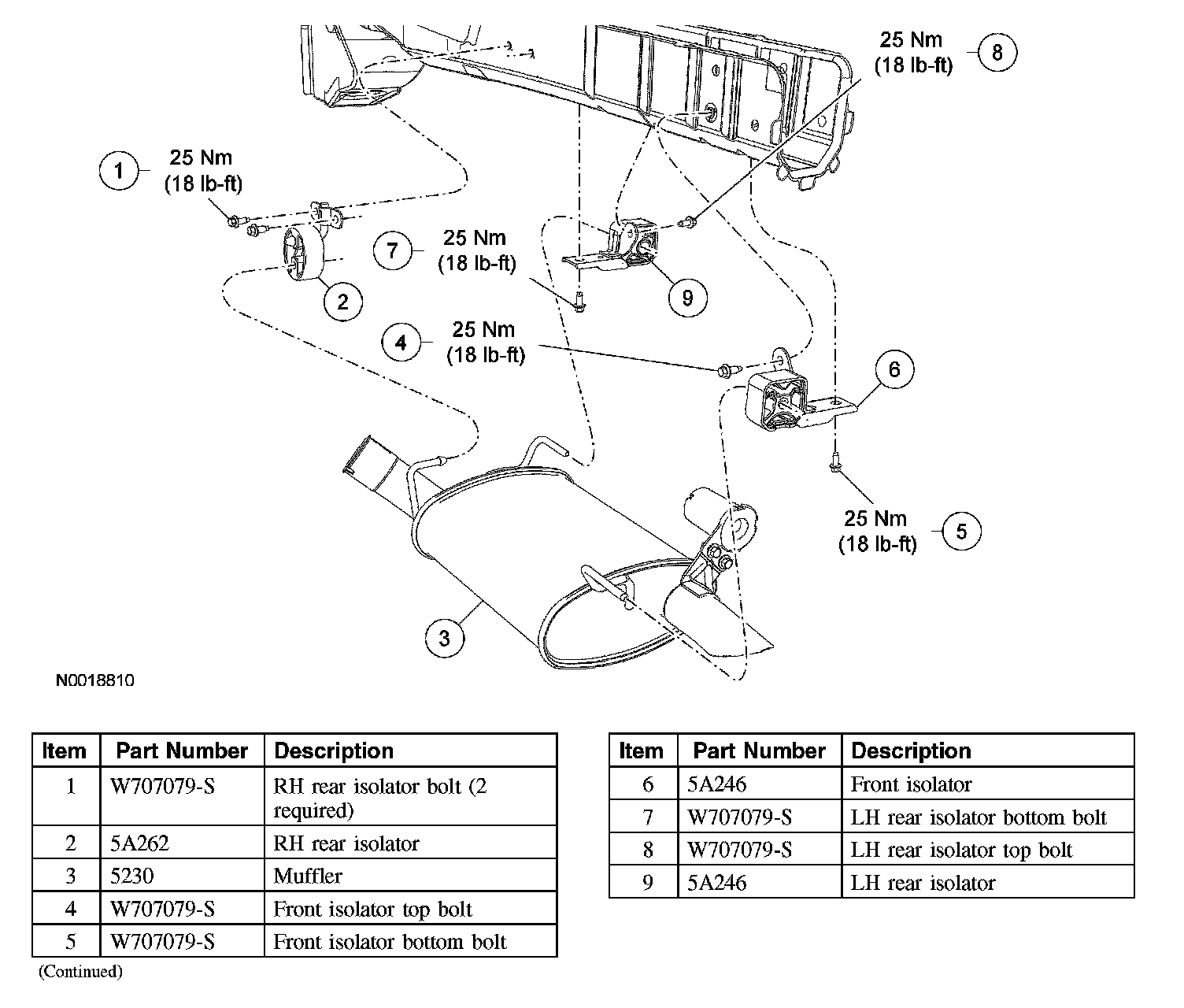

Exhaust System - 4.6L:
