System Specifications

TIMING CHAIN TENSIONER BOLTS
Timing chain tensioner bolts (primary) 25 Nm (18 ft. lbs.)
Timing chain tensioner bolts (secondary) 10 Nm (89 inch lbs.)

Crankshaft Pulley
Stage 1: 120 Nm (88 ft. lbs.)
Stage 2: Loosen one full turn
Stage 3: 50 Nm (37 ft. lbs.)
Stage 4: additional 90 degrees

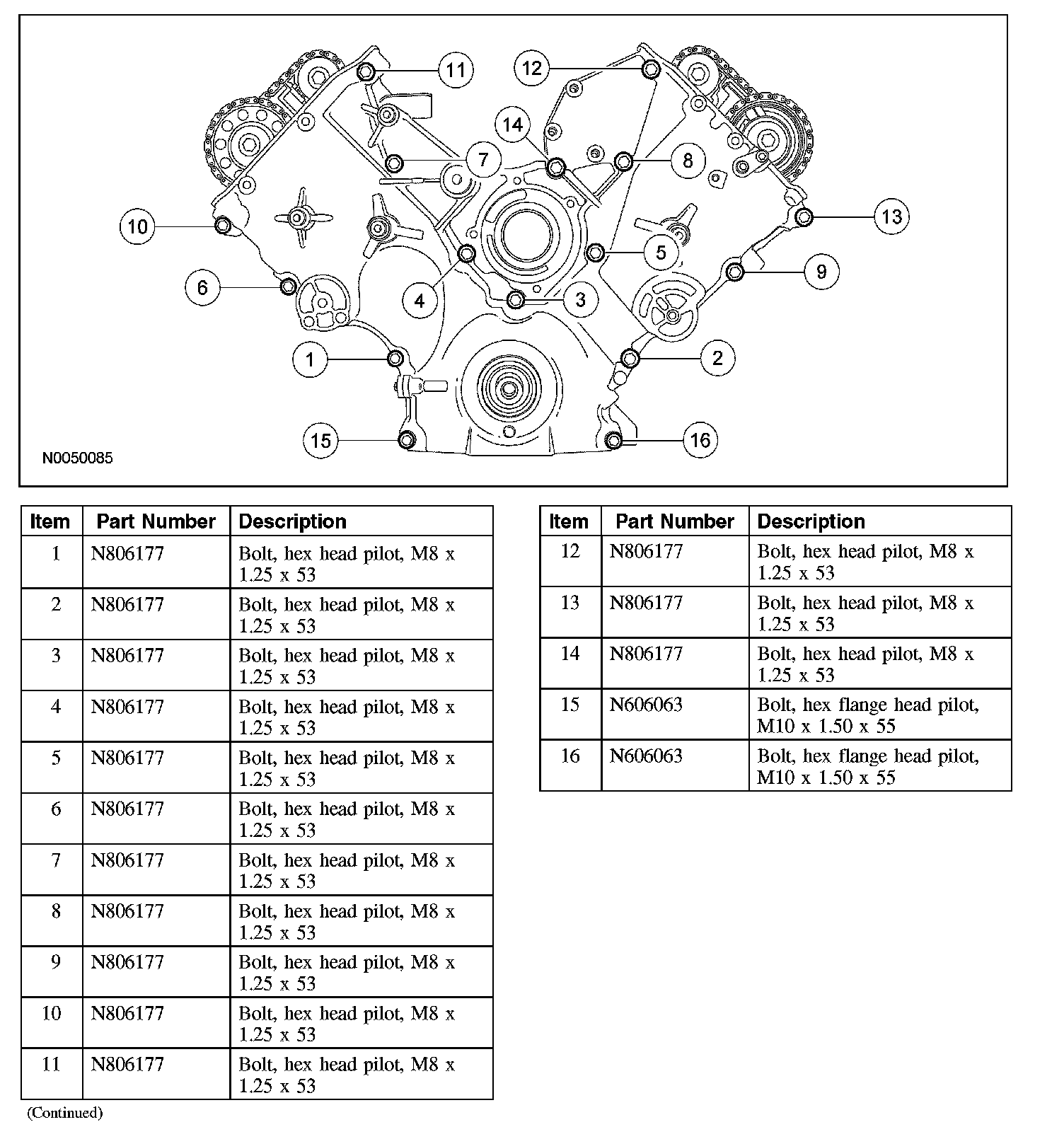

Engine Front Cover






Engine Front Cover Bolts
Bolts 1 through 14 25 Nm (18 ft. lbs.)
Bolts 15 and 16 50 Nm (37 ft. lbs.)

Oil Pan-To-Engine Front Cover
Tighten to 25 Nm (18 ft. lbs.)
