Communications Network: Notes

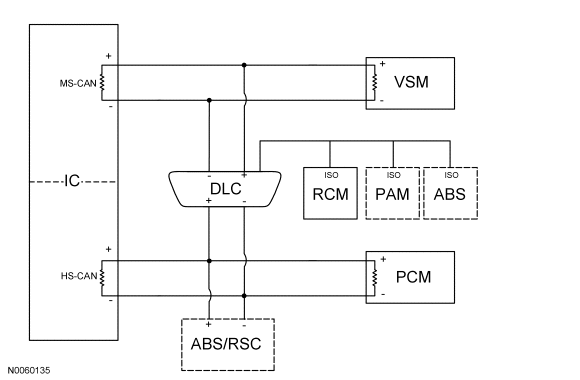

Vehicle communication utilizes the International Standards Organization (ISO) 9141 network, the medium speed controller area network (MS-CAN), and the high speed controller area network (HS-CAN) network. Information is sent to and from individual control modules that each control specific functions. All 3 networks are connected to the data link connector (DLC). The DLC can be found under the instrument panel between the steering column and the audio unit.
The 3 module communication networks are:
- ISO 9141
- Medium speed (MS) CAN
- High speed (HS) CAN
All 3 networks are connected to the DLC. This makes diagnosis and testing of these systems easier by allowing one scan tool to be able to diagnose and control any module on the 3 networks from one connector. The DLC can be found under the instrument panel between the steering column and the audio unit.
| Module Name | Network Type | Termination Module |
|---|---|---|
| Anti-lock brake system (ABS) module (without roll stability control) (if equipped) | ISO 9141 | N/A |
| ABS module (with roll stability control) (ABS/RSC) (if equipped) | HS-CAN | No |
| Instrument cluster (IC) (gateway module) | HS-CAN MS-CAN |
Yes Yes |
| Parking aid module (PAM) (if equipped) | ISO 9141 | N/A |
| Powertrain control module (PCM) | HS-CAN | Yes |
| Restraints control module (RCM) | ISO 9141 | N/A |
| Vehicle security module (VSM) | MS-CAN | Yes |
