Speed Control Deactivator Switch: Notes

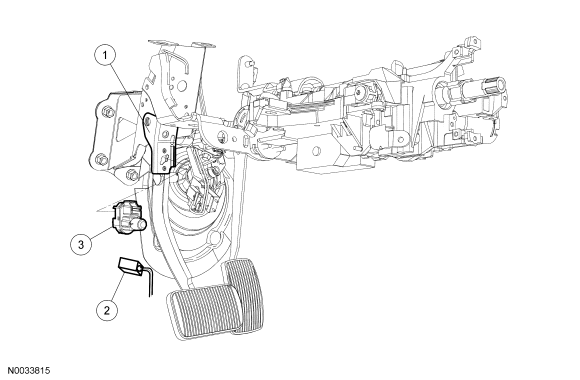

Fig 1: Exploded View Of Speed Control Deactivator Switch
GF0020610Courtesy of FORD MOTOR CO.
Item Part Number Description
1 2450 Brake pedal bracket
2 - Speed control deactivator switch electrical connector (part of instrument panel harness)
3 9F924 Speed control deactivator switch
