Speed Control Switch: Notes

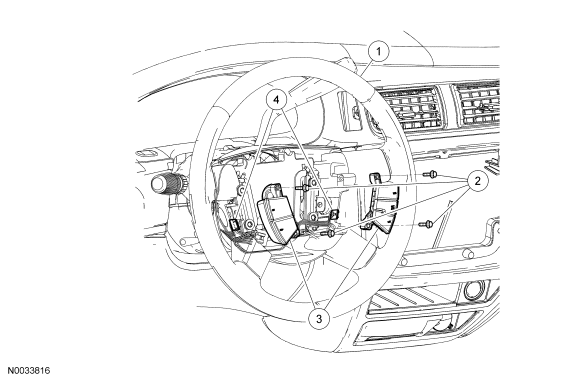

Fig 1: Exploded View Of Speed Control Switch With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3600	Steering wheel
2	-	Speed control switch screws (2 required each switch)
3	9C888	Speed control switches
4	-	Speed control switches electrical connectors (part of column harness)
