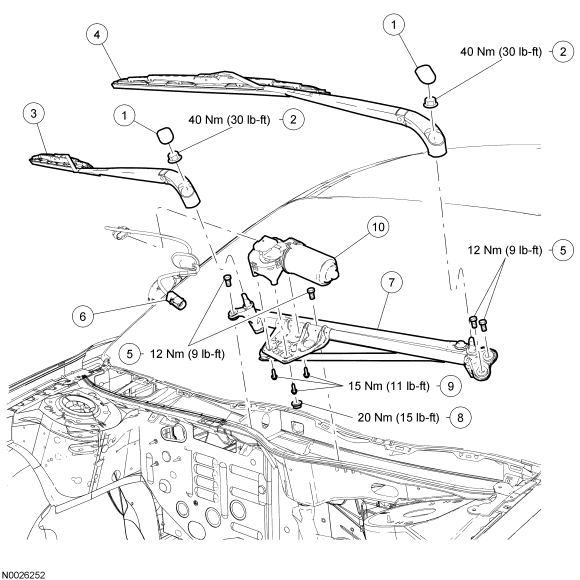

Wiper and Washer System - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 17C526 | Wiper pivot arm nut cover (2 required) |
| 2 | N808909 | Wiper pivot arm nut (2 required) |
| 3 | 17526 | Wiper pivot arms passenger side |
| 4 | 17527 | Wiper pivot arms driver side |
| 5 | N811217 | Wiper mounting arm and pivot shaft bolts (4 required) |
| 6 | 14290 | Electrical connector (part of 14290) |
| 7 | 17566 | Windshield wiper mounting arm and pivot shaft |
| 8 | - | Windshield wiper operating arm bolt |
| 9 | N611175 | Windshield wiper motor bolts (3 required) |
| 10 | 17508 | Windshield wiper motor |
- For additional information, refer to the appropriate procedures.
