Relay Center Box 1

NOTE: For component location, see ELECTRICAL COMPONENT LOCATOR article.

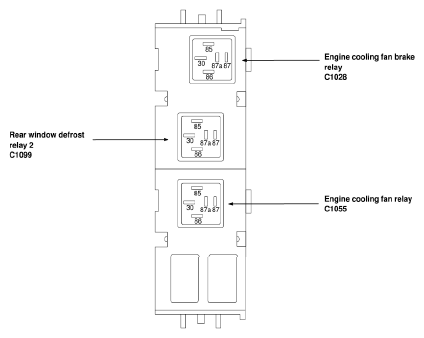

Fig 1: Identifying Relay Center Box 1 Relays
G05505693Courtesy of FORD MOTOR CO.
RELAY CENTER BOX 1 RELAY IDENTIFICATION

RELAY NUMBER RELAY DESCRIPTION
C1099 Rear window defrost relay 2
C102B Engine cooling fan brake relay
C1055 Engine cooling fan relay
