Autolamp Sensor Connector

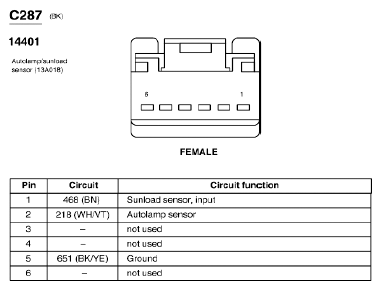

Fig 1: Autolamp Sensor Connector End View (C287)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
