Brake Fluid Level Switch Connector

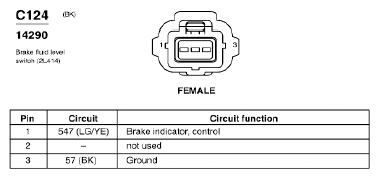

Fig 1: Brake Fluid Level Switch Connector End View (C124)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
