Brake Shift Interlock Connector

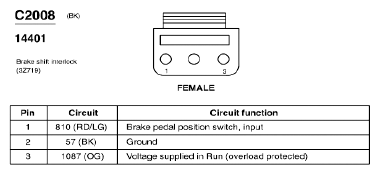

Fig 1: Brake Shift Interlock Connector End View (C2008)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
