Map Reading Lamps Connector

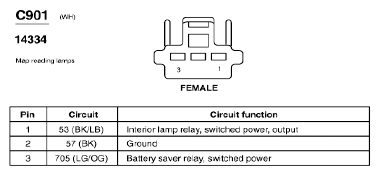

Fig 1: Map Reading Lamps Connector End View (C901)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
