Multifunction Switch Connectors

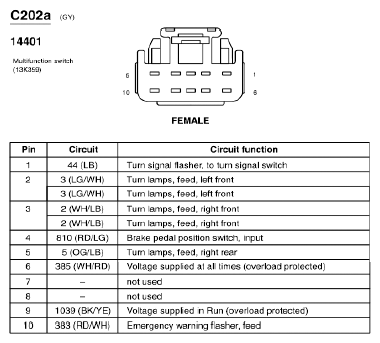

Fig 1: Multifunction Switch Connector End View (C202a)
Courtesy of FORD MOTOR CO.

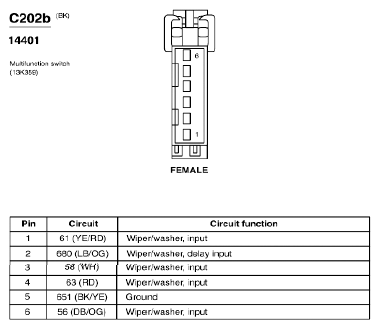

Fig 2: Multifunction Switch Connector End View (C202b)
Courtesy of FORD MOTOR CO.

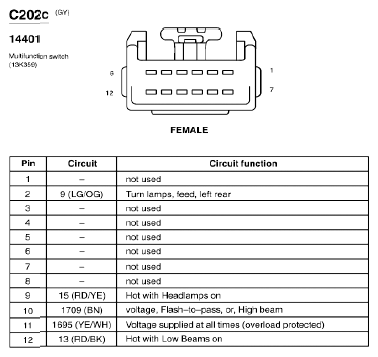

Fig 3: Multifunction Switch Connector End View (C202c)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
