Seat Track Position Sensor, Left Connector

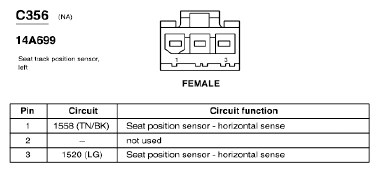

Fig 1: Seat Track Position Sensor, Left Connector End View (C356)
G07850213Courtesy of FORD MOTOR CO.

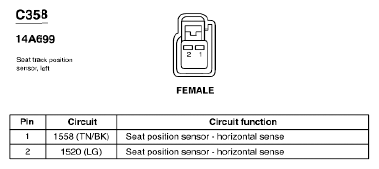

Fig 2: Seat Track Position Sensor, Left Connector End View (C358)
G07850215Courtesy of FORD MOTOR CO.
