Smart Junction Box (SJB) Connector

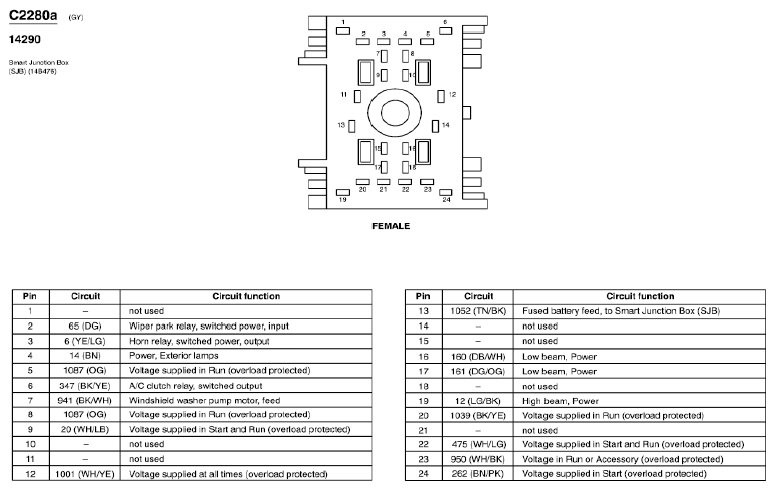

Fig 1: Smart Junction Box (SJB) Connector End View (C2280a)
G05169128Courtesy of FORD MOTOR CO.

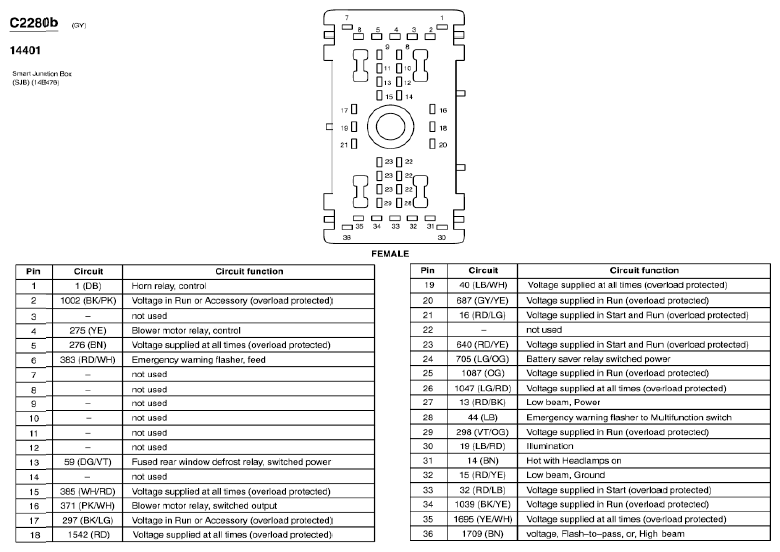

Fig 2: Smart Junction Box (SJB) Connector End View (C2280b)
G05169129Courtesy of FORD MOTOR CO.

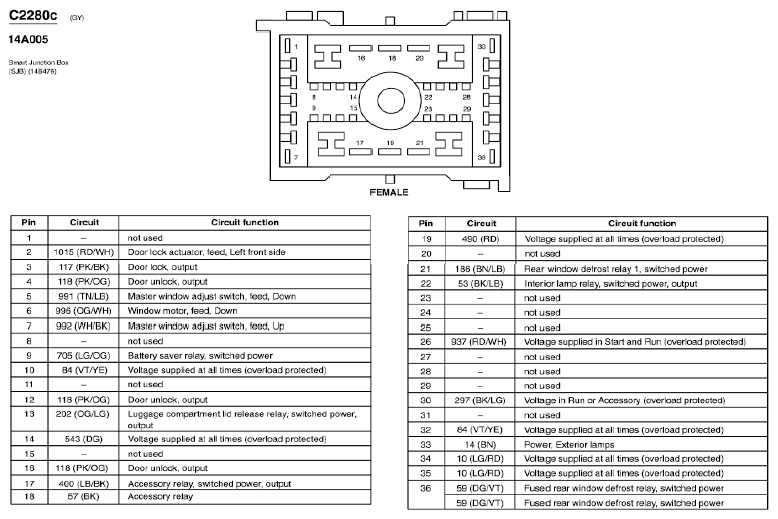

Fig 3: Smart Junction Box (SJB) Connector End View (C2280c)
G05169130Courtesy of FORD MOTOR CO.
Fig 4: Smart Junction Box (SJB) Connector End View (C2260d)
G07850331Courtesy of FORD MOTOR CO.

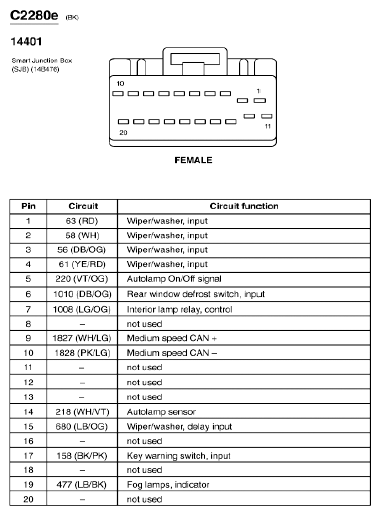

Fig 5: Smart Junction Box (SJB) Connector End View (C2280e)
G07850332Courtesy of FORD MOTOR CO.

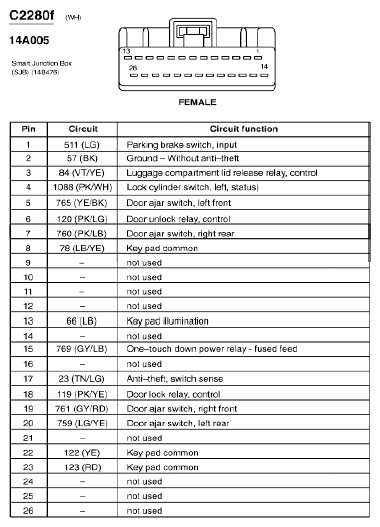

Fig 6: Smart Junction Box (SJB) Connector End View (C2280f)
G07850333Courtesy of FORD MOTOR CO.
