Tweeter, Left Front Connector

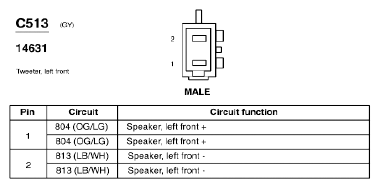

Fig 1: Tweeter, Left Front Connector End View (C513)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
