Instrument Cluster Finish Panel: Notes

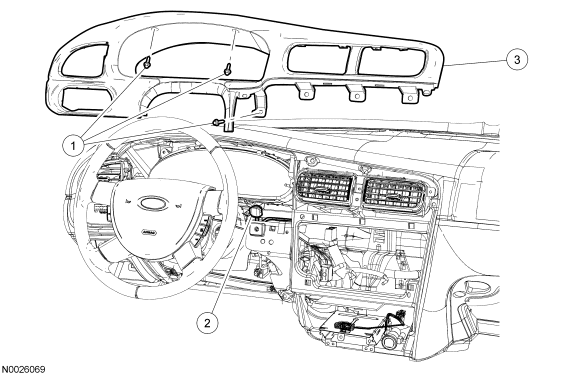

Fig 1: Exploded View Of Instrument Cluster Finish Panel
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
W705314-S
Instrument cluster finish panel screws (3 required)
2
-
Traction control switch electrical connector (part of 14489) (if equipped)
3
04302-A
Instrument cluster finish panel
