Engine Cooling Fan Module Connector - C1048

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

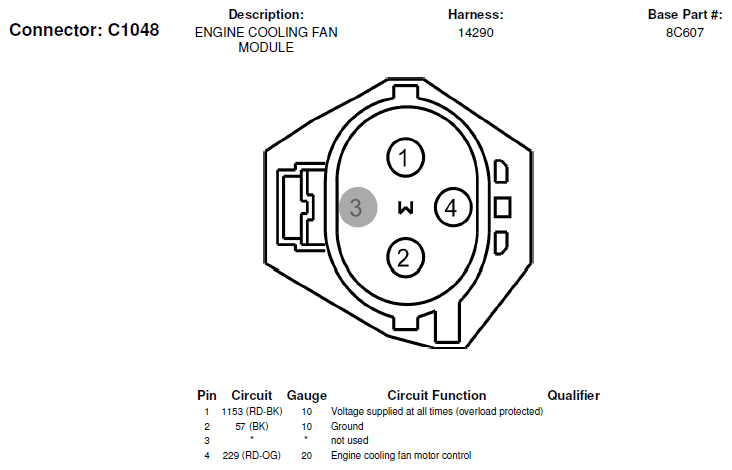

Fig 1: Engine Cooling Fan Module Connector End View (C1048)
G06414312Courtesy of FORD MOTOR CO.
