Collapsible Steering Column Module Connector - C2360

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

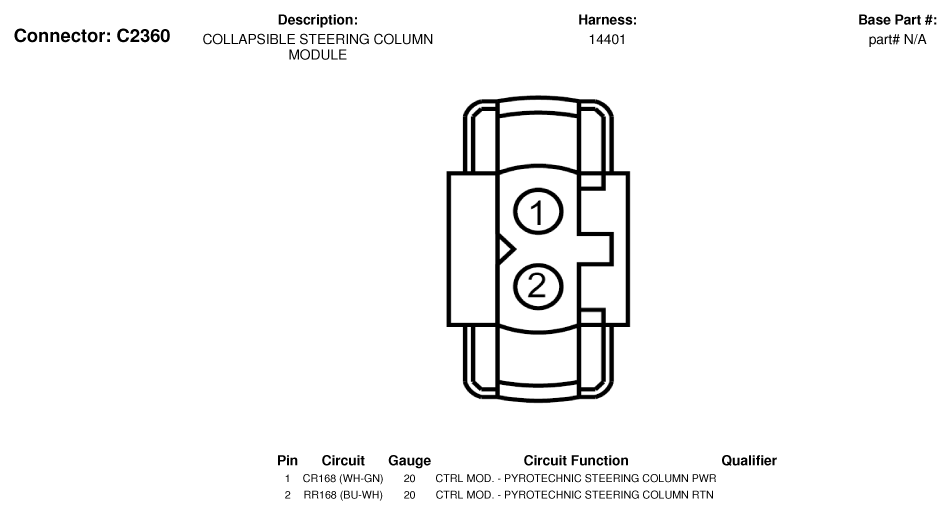

Fig 1: Collapsible Steering Column Module Connector End View (C2360)
G07336273Courtesy of FORD MOTOR CO.
