Driver Safety Canopy Module Connector - C9018

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

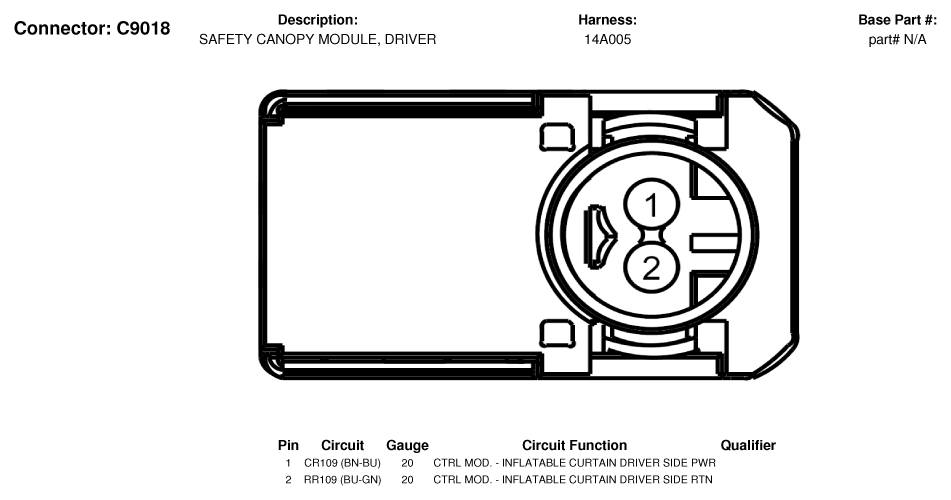

Fig 1: Driver Safety Canopy Module Connector End View (C9018)
G07336441Courtesy of FORD MOTOR CO.
