Jacking Points

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

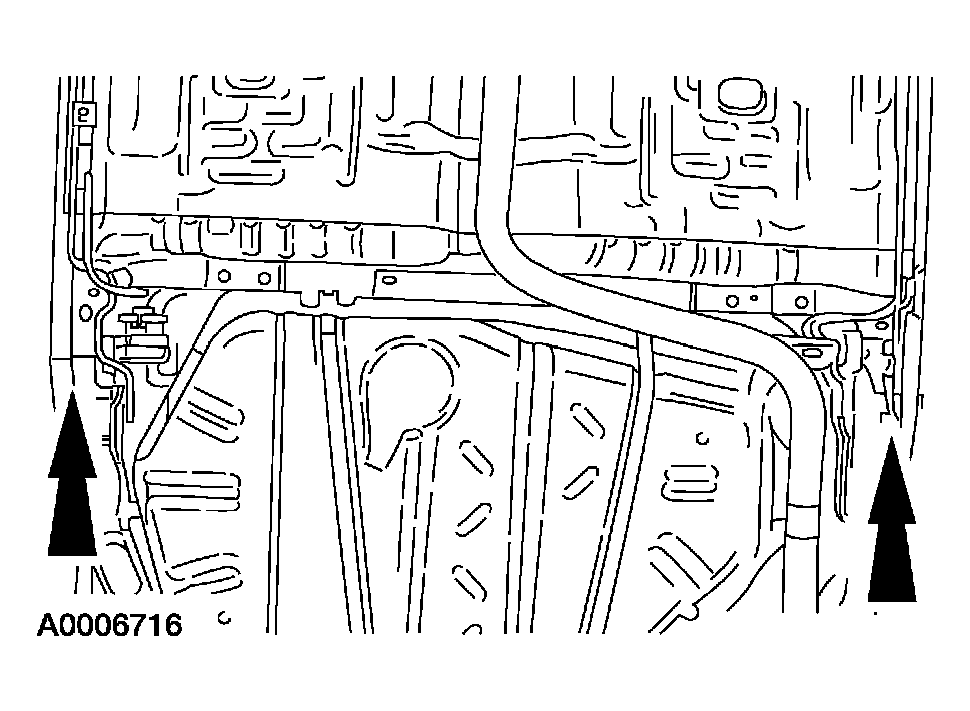

Fig 1: Identifying Vehicle Jacking Points (1 Of 2)

Courtesy of FORD MOTOR CO.

To lift the front or either side of the front end, position the floor jack under the front frame lift points.

Fig 2: Identifying Vehicle Jacking Points (2 Of 2)

Courtesy of FORD MOTOR CO.

To lift the rear or either side of the rear end, position the floor jack under the pinch point notches.
