Front Disc Brake Shield: Installation

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Use only aluminum rivets. Steel rivets can cause galvanic corrosion.

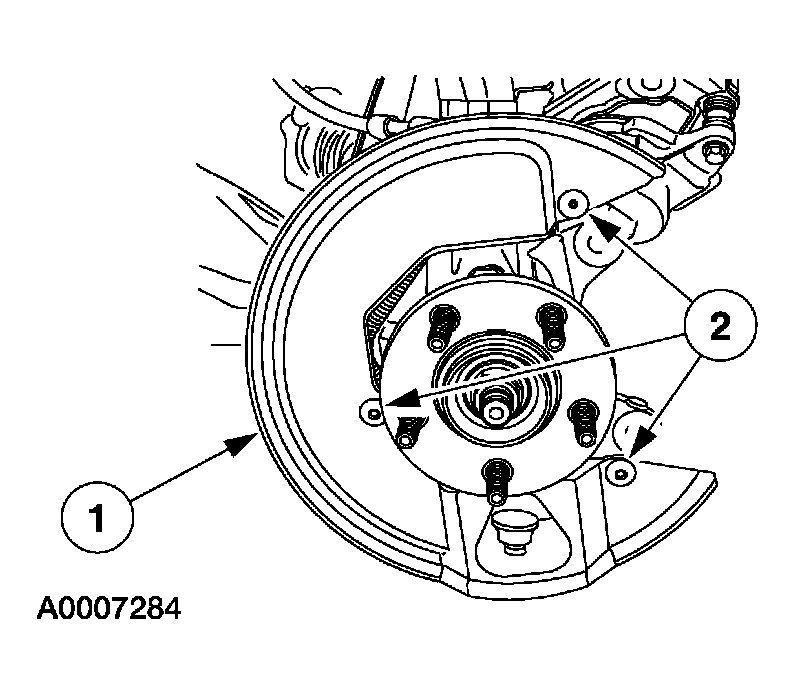

    Fig 1: Installing Brake Disc Shield
    G03954502Courtesy of FORD MOTOR CO.
  1. Install the brake disc shield.
    1. Position the shield.
    2. Install the rivets.
  2. Install the brake disc. For additional information, refer to BRAKE DISC  .
