Special Tool(s)

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL CHART

G03952119
 Remover, O-Ring Seal 100-010 (T71P-19703-C)

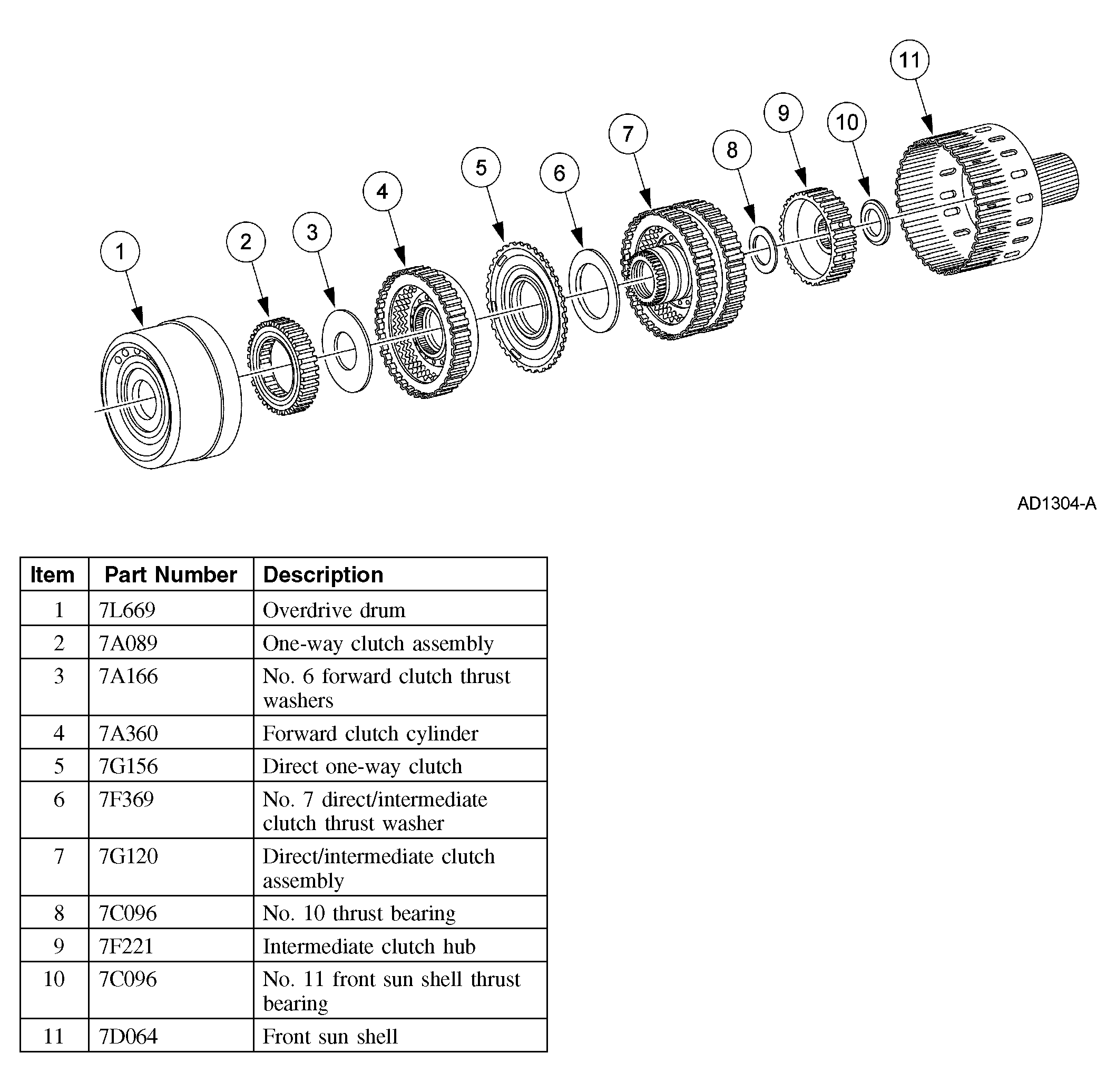

Fig 1: Exploded View Of Sun And Shell Assembly
G03957190Courtesy of FORD MOTOR CO.
